MÁY CHỦ DELL POWEREDGE T630 E5-2699 V3 2.3GHZ,45M CHÍNH HÃNG, CHẤT LƯỢNG, GIÁ RẺ TẠI THẾ GIỚI SỐ
KEY FEATURES MÁY CHỦ SERVER DELL POWEREDGE T630 Intel® Xeon® E5-2699 v3 2.3GHz,45M Cache,9.60GT/s QPI,Turbo,HT,18C/36T (145W) Max Mem 2133MHz
Processor: Intel® Xeon® E5-2699 v3 2.3GHz,45M Cache,9.60GT/s QPI,Turbo,HT,18C/36T (145W) Max Mem 2133MHz
Memory: 16GB RDIMM, 2133MT/s, Dual Rank, x4 Data Width
Storage: 1TB 7.2K RPM SATA 6Gbps 3.5in Hot-plug Hard Drive
RAID Controllers: S130, Software RAID (for Microsoft OS Only)
Chassis: 5U Tower
Power Supply: Single, Hot-plug Power Supply (1+0), 1100W
Optical Drive: No Internal Optical Drive

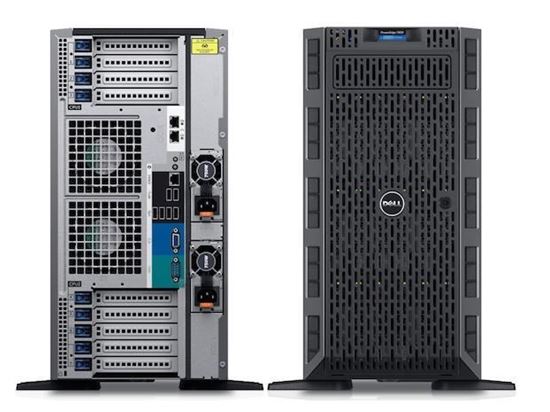

MÁY CHỦ SERVER DELL POWEREDGE T630 E5-2699 v3 2.3GHz,45M
| Processor | Intel® Xeon® processor E5-2600 v3 product family |
| Operating System | Microsoft® Windows Server® 2008 R2 Microsoft Windows Server 2012 Microsoft Windows Server 2012 R2 Novell® SUSE® Linux Enterprise Server Red Hat® Enterprise Linux VMware® ESX® |
| Chipset | Intel C610 series |
| Memory | 24 DIMM slots, DDR4 memory Architecture: Up to 2133MHz MHz DDR4 DIMMs Memory Type: RDIMM&LRDIMM Memory Module Sockets: Twenty Four Minimum RAM: 2 GB (one module) Maximum RAM: Up to 1536GB (24 DIMM slots): 2GB/4GB/8GB/16GB/32GB/64GB |
| Hypervisor Support | Microsoft® Windows Server® 2008, with Hyper-V® VMware® ESXi Citrix XenServer |
| Storage | SAS, SATA, Near-line SAS, SSD, PCIe SSD: 18 x 3.5" HDD – up to 72TB via 4TB hot-plug SAS hard drives 32 x 2.5” HDD – up to 32TB via 1TB hot-plug SAS hard drives Up to 4 optional Express Flash PCIe SSD’s |
| Drive Bays | Internal hard drive bay and hot-plug backplane: Up to 8 x 3.5” SAS, SATA, Near-Line SAS,SSD, PCIe SSD drives with optional flex bay Up to 18 x 3.5” SAS, SATA, Near-Line SAS,SSD drives without optional flex bay Up to 16 x 2.5” SAS, SATA, Near-line SAS, SSD, PCIe SSD drives with optional flex bay Up to 32 x 2.5” SAS, SATA, Near-Line SAS,SSD drives with optional flex bay |
| Slots | Slot 1: Full Length, Full Height, CPU1 - PCIe Gen3 x16 (x16 connector) Slot 2: Full Length, Full Height, PCH - PCIe Gen2 x4 (x8 connector) Slot 3: Full Length, Full Height, CPU1 - PCIe Gen3 x16 (x16 connector) Slot 4: Half Length, Full Height, CPU2 - PCIe Gen3 x8 (x8 connector) Slot 5: Full Length, Full Height, CPU2 - PCIe Gen2 (DMI) x4 (x8 connector) Slot 6: Full Length, Full Height, CPU2 - PCIe Gen3 x16 (x16 connector) Slot 7: Full Length, Full Height, CPU2 - PCIe Gen3 x16 (x16 connector) Slot 8: Half Length, Full Height, CPU1 - PCIe Gen3 x8 (x8 connector) |
| RAID Controllers | Internal: PERC S130 / PERC H330 / PERC H730 /PERC H730P External: PERC H830 |
| Network Controller | 2 x 1Gb Broadcom® 5719 quad-port 1Gb NIC Broadcom 5720 dual-port 1Gb NIC Broadcom 57810 dual-port 10Gb DA/SFP+ CNA Broadcom 57810 dual-port 10Gb Base-T network adapter Intel® Ethernet I350 dual-port 1Gb server adapter Intel Ethernet I350 quad-port 1Gb server adapter Intel Ethernet X540 dual-port 10GBASE-T server adapter Mellanox® ConnectX®-3 dual-port 10Gb Direct Attach/SFP+ server network adapter Mellanox ConnectX-3 dual-port 40Gb Direct Attach/QSFP server network adapter Emulex® LPE 12000, single-port 8Gb Fibre Channel HBA Emulex LPE 12002, dual-port 8Gb Fibre Channel HBA Emulex LPe16000B, single-port 16Gb Fibre Channel HBA Emulex LPe16002B, dual-port 16Gb Fibre Channel HBA Emulex OneConnect OCe14102-U1-D 2-port PCIe 10GbE CNA QLogic® 2560, single-port 8Gb Optical Fibre Channel HBA QLogic 2562, dual-port 8Gb Optical Fibre Channel HBA Qlogic 2660, single-port 16GB, Fibre Channel HBA, full height Qlogic 2662, dual-port 16GB, Fibre Channel HBA, full height |
| Availability | ECC memory Hot-plug hard drives Hot-plug redundant cooling Hot-plug redundant power iDRAC8 Internal Dual SD Module Single Device Data Correction (SDDC) Spare Rank Tool-less chassis Support for high availability clustering and virtualization Proactive systems management alerts iDRAC8 with Lifecycle Controller |
| Graphics Card | Video Type :Integrated Integrated Matrox G200 with iDRAC8 Video Memory: 16 MB shared with iDRAC8 application memory GPUs – Support for up to four optional 300W internal GPU processing accelerators |
| Chassis | 5U Tower |
| Management | Dell OpenManage portfolio of systems management solutions, including: OpenManage Essentials console iDRAC8 with Lifecycle Controller |
| Power Supply | Titanium efficiency 750W AC power supply Gold efficiency 1100W DC power supply Platinum efficiency 495W, 750W, 1100W or 1600W AC power supply |
| Optical Drive | No Internal Optical Drive |
