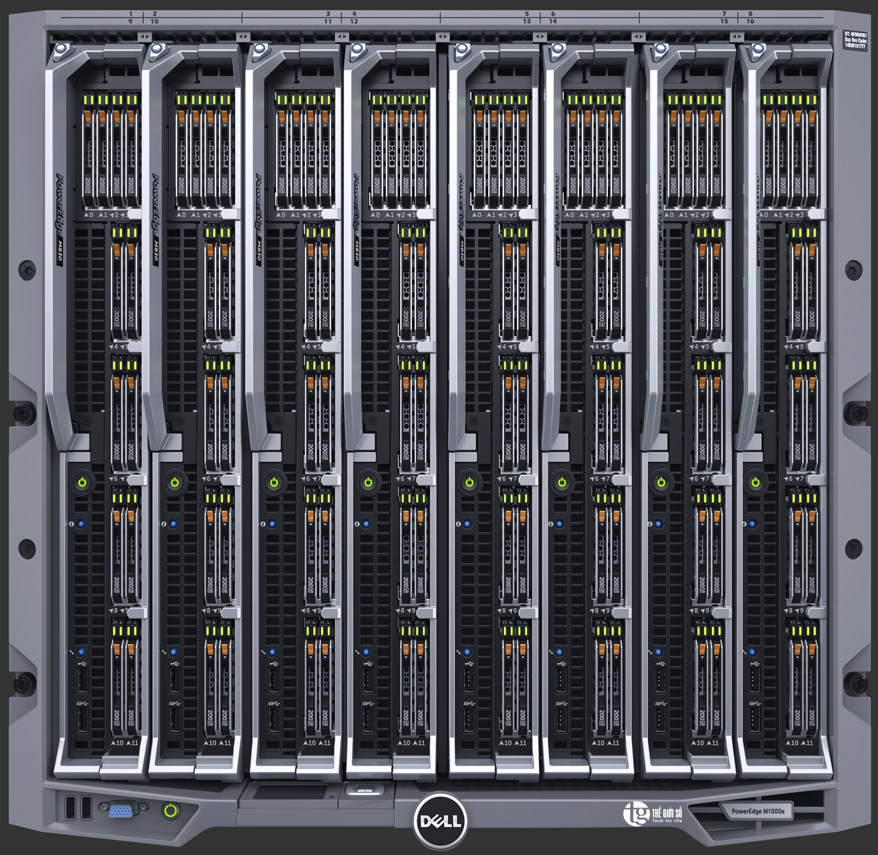

KEY FEATURES DELL POWEREDGE M1000E BLADE ENCLOSURE SERVER
| Chức năng | Tính năng kỹ thuật PowerEdge M1000e |
| Yếu tố hình thức | Form Factor: 10U modular enclosure holds up to sixteen half-height blade servers 44.0cm (17.3”) H x 44.7cm (17.6”) W x 75.4cm (29.7”) D Weight: • Empty Chassis only—98lbs • Chassis with all rear modules (IOMs, PSUs, CMCs, KVM)—176lbs • Max Fully loaded with blades and rear modules—394lbs |
| Công suất nguồn | Lên tới 2700W hot-plug power supplies. Based on Dell’s Energy Smart technologies, the M1000e power supplies deliver greater levels of efficiency, even at low levels of utilization. Supported power supply configurations include: • 3+3 and 2+2 (AC redundancy) • 3+1, 4+2, and 5+1 (power supply redundancy) • 2+0 and 3+0 (non-redundant mode) The M1000e chassis supports new Dynamic Power Supply Engagement functionality, which (if enabled) puts lightly loaded power supplies into standby mode, driving up the utilization and the efficiency of the active supplies. Dell supports either 110–120V or 208–240V AC power supply i |
| Hệ thống quạt làm mát | M1000e Chassis comes standard with 9 hot-pluggable, redundant fan modules • Based on Dell Energy Smart Technologies, M1000e fans are a breakthrough in power and cooling efficiency • The fans deliver low power consumption, but also use next generation fan technologies to ensure the lowest possible amount of fresh air is consumed to cool the enclosure |
| Kết nối nội bộ | Front Control Panel with interactive Graphical LCD • Supports initial configuration wizard • Local server blade, enclosure, and module information and troubleshooting Two USB Keyboard/Mouse connections and one Video connection (requires the optional Avocent iKVM switch to enable these ports) for local front “crash cart” console connections that can be switched between blades |
| Các module vào/ ra | FlexIO technologies include: • Completely passive, highly available midplane that can deliver 5Tbps of total I/O bandwidth • Support for up to two ports of up to 56Gbps from each I/O Mezzanine card on the blade server Dell™ PowerConnect™ M8428-k • Converged 10 Gigabit Ethernet (10GbE) switch with 600ns low-latency, wire-speed, cut-through 10GbE performance, Fibre Channel over Ethernet (FCoE) switching, and low-latency 8Gb Fibre Channel switching and connectivity. • 8 ports of 10GbE and DCB support with 4 Fibre Channel ports supporting 2, 4, and 8Gbps full duplex PowerConnect M8024-k 10Gb Ethernet Switch Includes up to 8 external LAN ports using four fixed SFP+ ports and one FlexIO modular bay supporting 4 additional SFP+, 10GBASE-T, or CX-4 ports for diverse connectivity PowerConnect M6220 Gigabit Ethernet Switch Includes 4 x fixed copper 10/100/1000Mb Ethernet uplinks standard plus 2 of the following optional modules: • 48Gb (full duplex) stacking module • 2 x 10Gb optical (XFP-SR/LR) uplinks • 2 x 10Gb copper CX4 uplinks PowerConnect M6348 Gigabit Ethernet Blade Switch Includes 16 external fixed 10/100/1000Mb Ethernet RJ-45 ports to support 32 internal server GbE connections supplied by quad-port |
| Khe cắm vào/ra | One PCIe 3.0 x8 fully populated mezzanine card slot and switch modules yields 2 redundant I/O fabrics per blade |
| Điều khiển RAID | Internal controller: PERC H310 |
| Nguồn hỗ trợ và quạt | Hỗ trợ bởi chassic M1000e |
| Điều khiển quản trị | iDRAC7 with Lifecycle Controller for Blades (default), iDRAC7 Enterprise with Lifecycle Controller (upgrade option) |
| Quản trị hệ thống | (standard) or optional 2nd (redundant) Chassis Management Controller(s) (CMC) which provide: • Single secure interface for inventory, configuration, monitoring, and alerting for the chassis and all components • Multi-chassis management capability allows up to 9 chassis to be managed from a single, embedded, agent-less interface • Enables automated and embedded one-to-many blade BIOS and firmware updates, independent of the OS through iDRAC • Allows one-to-many blade server BIOS capture • Real-Time Power/Thermal Monitoring and Management • Real-Time System AC Power Consumption with resettable peak and minimum values • System-level power limiting and slot-based power prioritization • Manages Dynamic Power Engagement functionality which can help to lower overall system power consumption by ensuring power supplies run at their optimal efficiency points • Manages fan speed control using Dell’s enhanced efficiency technologies to ensure fans are delivering optimal cooling while minimizing power consumption and airflow • Secure Web (SSL) and Command Line (Telnet/SSH) interfaces • Supports multiple levels of user roles and permissions, including integration into Microsoft® Active Directory Services • 2 x 10/100/1000Mb Ethernet ports + 1 serial port • Provides single point of connection from management network to iDRAC on each of the blades and the management interfaces on the integrated I/O Modules • 2nd Ethernet port supports daisy chaining of CMCs for improved cable management |
