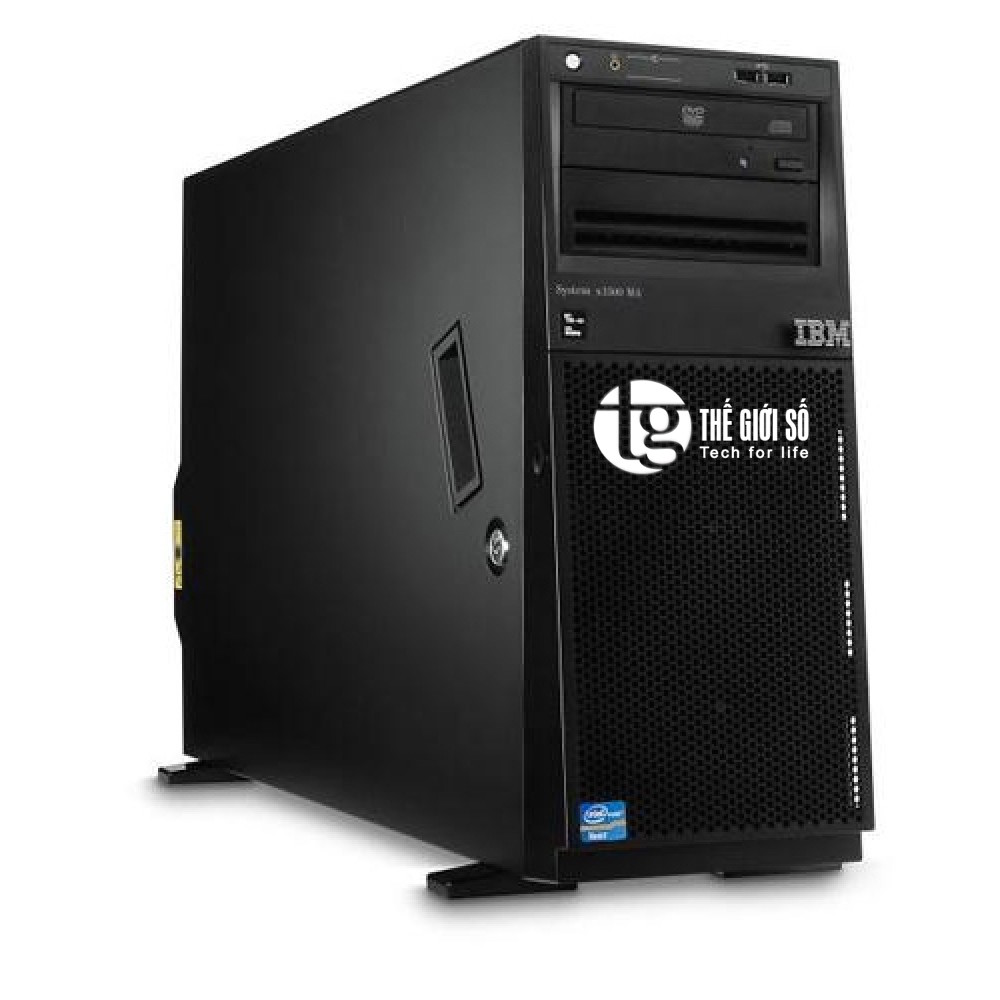

SERVER LENOVO IBM System X3500 M4 Intel® Xeon® 6-Core Processor E5-2630v2, 2.3GHz, 15MB, LGA2011

MODEL

IBM® System® x3500 M4 (Tower/5U)

Chipset

Intel C602 chipset

Processor

1 x Intel® Xeon® 6-Core Processor E5-2630, 2.3GHz, 15MB, LGA2011

* Dual 2011-pin LGA Sockets R
* Supports up to two Intel® 64-bit Xeon® processor(s) of the same type below:
o Intel® Xeon® Processor E5-2600 Series

System Bus

* Intel QuickPath Interconnect up to 8.0 GT/s

Operating systems supported

* Microsoft Windows Server 2008 R2 and 2008, Red Hat Enterprise Linux 5 and 6, SUSE Linux Enterprise Server 10 and 11, VMware ESX 4.1 and VMware ESXi 4.1 embedded hypervisor, VMware vSphere 5.

System Memory

1 x IBM 8GB PC3-10600 CL9 ECC DDR3 1333MHz LP RDIMM

24 x 240-pin DIMM sockets

Up to 768 GB (UDIMM/RDIMM/LRDIMM*/HCDIMM)

DIMM Sizes * 1GB, 2GB, 4GB, 8GB, 16GB, 32GB

Storage

Non HDD

8/32 bay(2.5') hot-swap SAS/SATA/SSD
Up to 32 TB (2.5" model) or 24 TB (3.5" model) SAS/SATA

Raid Controller

IBM ServeRAID M1115 SAS/SATA Controller (RAID-0, -1, -10)

Network Controller

Intel I350AM4 Quad Port GbE

Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output

Intel® I/OAT support for fast, scaleable, and reliable networking

Graphics

Integrated Matrox G200eR2 with 16 MB memory

Expansion Slots

Up to eight PCIe expansion slots; Six PCIe standard with additional two PCIe slots when the second processor is populated. Optional PCI-X available via interposer conversion kit.

Drives

DVD ROM

Power

1 x IBM 750W Redundant Power Supply Unit

Form Fact

Tower Server

Systems management

Automatic Server Restart; Predictive Failure Analysis on processors, voltage regulator modules (VRMs), fans and memory; light path diagnostics; Integrated Management Module 2; optional remote presence; IBM Systems Director and IBM Systems Director Active Energy Manager, IMM2 with dedicated management port

MODEL

IBM® System® x3500 M4 (Tower/5U)

Chipset

Intel C602 chipset

Processor

1 x Intel® Xeon® 6-Core Processor E5-2620v2, 2.1GHz 15M 7.2GT/s QPI

* Dual 2011-pin LGA Sockets R
* Supports up to two Intel® 64-bit Xeon® processor(s) of the same type below:
   o Intel® Xeon® Processor E5-2600 v2 Series

System Bus

* Intel QuickPath Interconnect up to 8.0 GT/s

Operating systems supported

* Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware vSphere

System Memory

1 x 8GB PC3-10600 CL9 ECC DDR3 1333MHz LP RDIMM

24 x 240-pin DIMM sockets

Up to 768 GB (UDIMM/RDIMM/LRDIMM/HyperCloud DIMM)

DIMM Sizes * 1GB, 2GB, 4GB, 8GB, 16GB, 32GB

Storage

Non HDD

8/32 bay(2.5') hot-swap SAS/SATA/SSD
Up to 51.2 TB (2.5" model) or 32 TB (3.5" model) SAS/SATA

Raid Controller

ServeRAID M1115 SAS/SATA Controller (RAID-0, -1, -10)

Network Controller

Intel I350AM4 Quad Port GbE

Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output

Intel® I/OAT support for fast, scaleable, and reliable networking

Graphics

Integrated Matrox G200eR2 with 16 MB memory

Expansion Slots

Up to eight slots with two processors and six slots when one CPU is installed. All slots are PCIe 3.0 slots except Slot 1, which is a Gen 2 slot:
Slot 1: PCIe x8 (x4 wired); full-height, half-length (supports optional PCI-X 64 bit/133 MHz interposer card)
Slot 2: PCIe x8; full-height, half-length
Slot 3: PCIe x8; full-height, full-length
Slot 4: PCIe x8 (x4 wired); full-height, full-length
Slot 5: PCIe x16; full-height, full-length
Slot 6: PCIe x8 (x4 wired); full-height, full-length
Slot 7: PCIe x16; full-height, full-length
Slot 8: PCIe x16; full-height, full-length

Drives

DVD ROM

Power

1 x IBM 750W Redundant Power Supply Unit

Form Fact

Tower Server

Systems management

Automatic Server Restart; Predictive Failure Analysis on processors, voltage regulator modules (VRMs), fans and memory; light path diagnostics; Integrated Management Module 2; optional remote presence; IBM Systems Director and IBM Systems Director Active Energy Manager, IMM2 with dedicated management port

MODEL

IBM® System® x3500 M4 (Tower/5U)

Chipset

Intel C602 chipset

Processor

1 x Intel® Xeon® 4-Core Processor E5-2609v2, 2.5GHz 10M 6.4GT/s QPI

* Dual 2011-pin LGA Sockets R
* Supports up to two Intel® 64-bit Xeon® processor(s) of the same type below:
   o Intel® Xeon® Processor E5-2600 v2 Series

System Bus

* Intel QuickPath Interconnect up to 8.0 GT/s

Operating systems supported

* Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware vSphere

System Memory

1 x 4GB PC3-10600 CL9 ECC DDR3 1333MHz LP RDIMM

24 x 240-pin DIMM sockets

Up to 768 GB (UDIMM/RDIMM/LRDIMM/HyperCloud DIMM)

DIMM Sizes * 1GB, 2GB, 4GB, 8GB, 16GB, 32GB

Storage

Non HDD

8/32 bay(2.5') hot-swap SAS/SATA/SSD
Up to 51.2 TB (2.5" model) or 32 TB (3.5" model) SAS/SATA

Raid Controller

ServeRAID M1115 SAS/SATA Controller (RAID-0, -1, -10)

Network Controller

Intel I350AM4 Quad Port GbE

Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output

Intel® I/OAT support for fast, scaleable, and reliable networking

Graphics

Integrated Matrox G200eR2 with 16 MB memory

Expansion Slots

Up to eight slots with two processors and six slots when one CPU is installed. All slots are PCIe 3.0 slots except Slot 1, which is a Gen 2 slot:
Slot 1: PCIe x8 (x4 wired); full-height, half-length (supports optional PCI-X 64 bit/133 MHz interposer card)
Slot 2: PCIe x8; full-height, half-length
Slot 3: PCIe x8; full-height, full-length
Slot 4: PCIe x8 (x4 wired); full-height, full-length
Slot 5: PCIe x16; full-height, full-length
Slot 6: PCIe x8 (x4 wired); full-height, full-length
Slot 7: PCIe x16; full-height, full-length
Slot 8: PCIe x16; full-height, full-length

Drives

DVD ROM

Power

1 x IBM 750W Redundant Power Supply Unit

Form Fact

Tower Server

Systems management

Automatic Server Restart; Predictive Failure Analysis on processors, voltage regulator modules (VRMs), fans and memory; light path diagnostics; Integrated Management Module 2; optional remote presence; IBM Systems Director and IBM Systems Director Active Energy Manager, IMM2 with dedicated management port
