MÁY CHỦ DELL POWEREDGE R620 E5-2609 v2

Số lượng:

Giá bán: 0 VND

MÁY CHỦ DELL POWEREDGE R620 E5 - 2609 v2 CHÍNH HÃNG, GIÁ RẺ TẠI THẾ GIỚI SỐ

KEY FEATURES MÁY CHỦ SERVER DELL POWEREDGE R620 - 1x E5-2609v2 SSD/SATA/SAS

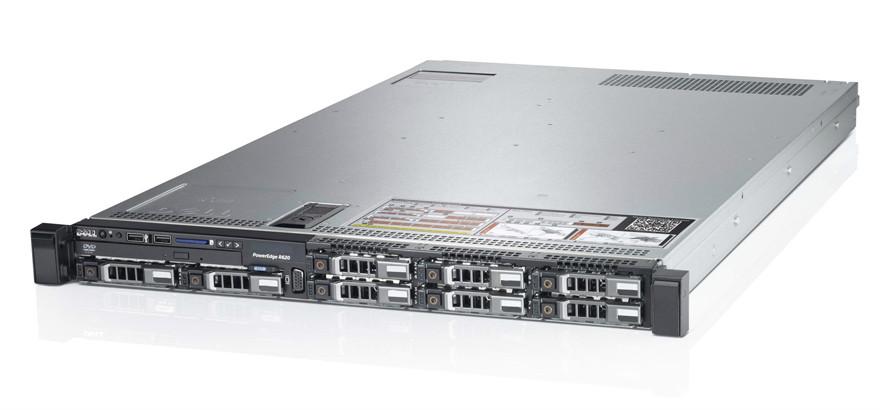

Dell PowerEdge R620 Server
    * 1 x Intel Xeon 4-Core E5-2609v2 2.50GHz, 10M Cache, 6.4GT/s QPI
    * 1 x 8GB DDR3 1333 240-Pin DDR3 ECC RDIMMs (PC3 10600)
    * Non x 10 HDD SSD/SATA/SAS Enterprise 2.5"
    * Dell™ PERC H710 Integrated RAID Controller 512MB Cache Hardware RAID 0,1,5,6,10,50,60
    * Broadcom® 5720 quad-port Gigabit Ethernet
    * Dual, Hot-plug, Redundant Power Supply (1+1), 750W

MÁY CHỦ SERVER DELL POWEREDGE R620 - 1x E5-2609v2

Processor

Intel® Xeon ® processor E5-2600 or E5-2600v2 product family

Processor Socket:
2

Internal Interconnect:
2 x Intel Quick Path Interconnect (QPI) links: 6.4 GT/s, 7.2 GT/s, 8.0 GT/s

Cache:
2.5MB per core; core options: 4, 6, 8, 10, 12

Operating System

Microsoft® Windows Server® 2012
Microsoft Windows Server 2008 R2 SP1, x64 (includes Hyper-V®)
Novell® SUSE® Linux Enterprise Server
Red Hat® Enterprise Linux®
Virtualization options:
Citrix® XenServer®
VMware® vSphere® ESXi ™
Red Hat Enterprise Virtualization®

Chipset

Intel C602

Memory

Up to 768GB (24 DIMM slots) 2GB/4GB/8GB/16GB/32GB DDR3 up to 1866MT/s

Storage

Maximum internal storage:
Up to 10TB

Hot-plug hard drive options:
2.5” PCIe SSD, SAS SSD, SATA SSD, SAS (15K, 10K), nearline SAS (7.2K), SATA (7.2K), SAS 512e (15K)
Self-Encrypting Drives available

Drive Bays

Up to ten 2.5" hot-plug SAS, SATA, or SSD or up to four hot-plug 2.5" SAS, SATA, or SSD + two PCIe SSD

Slots

3 PCIe slots:
Two x16 slots with x16 bandwidth, half-height, half-length
One x16 slot with x8 bandwidth, half-height, half-length
(ten-drive-bay configuration is available only with 3 PCIe slot option)

or

2 PCIe slots:
One x16 slot with x16 bandwidth, full-height, 3/4 length
One x16 slot with x16 bandwidth (or x8 with one processor only), half-height, half-length

RAID Controllers

Internal controllers:
PERC S110 (SW RAID)
PERC H310
PERC H710
PERC H710P
External HBAs (RAID):
PERC H810
External HBAs (non-RAID):
6Gbps SAS HBA

Communications

Broadcom® 5720 quad-port 1GbE Base-T (no TOE or iSCSI offload)
Intel I350 quad-port 1GbE Base-T (no TOE or iSCSI offload)
Intel X540 dual-port 10GbE Base-T with 2 x 1GbE (FCoE capability enabled on the 10GbE ports)
Broadcom 57800S dual-port 10GbE Base-T with 2 x 1GbE (TOE and iSCSI offload available on 10GbE ports) Broadcom 57800S dual-port 10GbE SFP+ with 2 x 1GbE (TOE and iSCSI offload available on 10GbE ports)Broadcom 57840S quad-port 10GbE SFP+ Rack NDC (NPAR1.0, SRIOV, DCB, iSCSI and FCoE offloads and CEM)

Power

Titanium efficiency, hot-plug redundant 750W power supply
Platinum efficiency, hot-plug redundant 495W, 750W or 1100W power supplies
Auto-ranging power supplies

Availability

High-efficiency, hot-plug, redundant power supplies; DC power supplies; hot-plug hard drives; TPM; dual internal SD support; hot-plug redundant fans; optional bezel; luggage-tag; ECC memory; interactive LCD screen; extended thermal support; ENERGY STAR® compliant; extended power range; Switch Agnostic Partitioning (SWAP)

Management

Remote Management
iDRAC7 with Lifecycle Controller
iDRAC7 Express (default), iDRAC7 Enterprise (upgrade option),
8GB vFlash media (upgrade option), 16GB vFlash media (upgrade option)

Systems Management
IPMI 2.0 compliant
Dell OpenManage™ Essentials
Dell OpenManage Power Center
Dell OpenManage Connections:
• Dell OpenManage Integration Suite for Microsoft® System Center
• Dell plug-in for VMware® vCenter™
HP Operations Manager, IBM Tivoli® Netcool® , and CA Network and Systems Management

Rack Support

ReadyRails II sliding rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded hole racks, with support for optional tool-less cable management arm
ReadyRails static rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded and 2-post (Telco) racks.
