SERVER DELL POWEREDGE R630 - E5-2620V3 2.4GHz 15M Cache


Số lượng:
Giá bán: 0 VND

SERVER DELL POWEREDGE R630 - 1X E5-2620V3 CHÍNH HÃNG, CHẤT LƯỢNG, GIÁ RẺ tại THẾ GIỚI SỐ

KEY FEATURES MÁY CHỦ DELL POWEREDGE R630 - 1X E5-2620V3

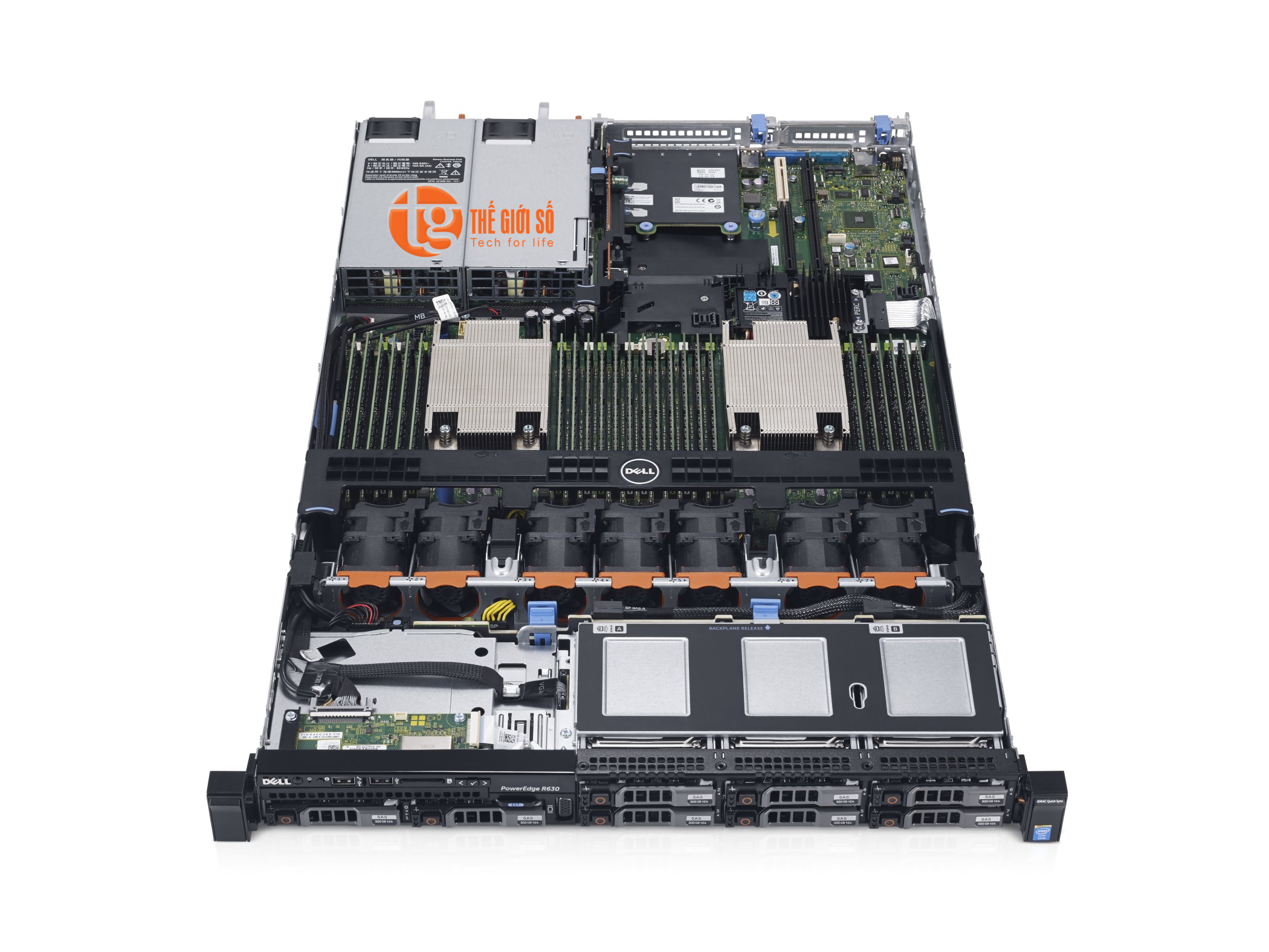

Dell PowerEdge R630 Server 2.5" Chassis
    * 1 x Intel Xeon 6-Core E5-2620v3 2.4GHz, 15M Cache, 8.0GT/s QPI
    * 2 x 8GB DDR4-2133 ECC RDIMMs
    * 4 x 1.2TB SAS 2.5" (up to 8 bays 2,5")
    * Dell™ PERC H730 Integrated RAID Controller 1GB Cache Hardware RAID 0,1,5,6,10,50,60
    * Broadcom® quad-port Gigabit Ethernet
    * Dual, Hot-plug, Redundant Power Supply (1+1), 750W

MÁY CHỦ DELL POWEREDGE R630 - 1X E5-2620V3

Processor

  • Intel® Xeon® E5 2600 v3 processors

Operating System

  • Microsoft® Windows Server® 2008 R2 SP1, (includes Hyper-V®)
    Microsoft Windows Server 2012
    Microsoft Windows Server 2012 R2 (includes Hyper-V)
    Novell® SUSE® Linux Enterprise Server
    Red Hat® Enterprise Linux

Chipset

  • Intel C610 series chipset

Memory1

  • 24 DIMM slots, DDR4 memory
    Architecture: Up to 2133MT/s DDR4 DIMMs
    Memory Type: RDIMM, LRDIMM
    Memory Module Sockets: 24
    Minimum RAM: 4GB (one module)
    Maximum RAM: Up to 768GB (24 DIMM slots): 4GB/8GB/16GB/32GB

Embedded Hypervisor (Optional)

  • Microsoft Windows Server 2012, includes Hyper-V
    VMware® vSphere® ESXi™
    Citrix® XenServer®

Storage

  • HDD: SAS, SATA, nearline SAS SSD: SAS, SATA, PowerEdge Express Flash NVMe PCIe SSD
    24 x 1.8” SSD – up to 23TB via 0.96TB hot-plug SATA SSD
    10 x 2.5” – up to 18TB via 1.8TB hot-plug SAS HDD
    8 x 2.5” – up to 14TB via 1.8TB hot-plug SAS HDD

Drive Bays

  • Internal hard drive bay and hot-plug backplane:
    Up to 24 x 1.8” SATA SSD
    Up to 10 x 2.5” HDD: SAS, SATA, nearline SAS SSD: SAS, SATA, Up to 4 NVMe PCIe
    Up to 8 x 2.5” HDD: SAS, SATA, nearline SAS SSD: SAS, SATA

Slots

  • 2 CPUs, 3 slots
    Slot 1: Half length, half height - PCIe 3.0 x16 (x16 connector)
    Slot 2: Half length, half height - PCIe 3.0 x8 (x16 connector)
    Slot 3: Half length, half height - PCIe 3.0 x16 (x16 connector)
    2CPUs, 2 slots
    Slot 1: Half length, half height - PCIe 3.0 x16 (x16 connector)
    Slot 2: 3/4 length, full height - PCIe 3.0 x16 (x16 connector)
    1CPU, 2 slots
    Slot 1: Half length, half height - PCIe 3.0 x8 (x16 connector)
    Slot 2: 3/4 length, full height - PCIe 3.0 x16 (x16 connector

    Dedicated RAID card slot

RAID Controllers

  • Internal:
    PERC S130 (SW RAID),
    PERC H330
    PERC H730
    PERC H730P
    External:
    PERC H830
    External HBAs (non-RAID):
    12Gbps SAS HBA

Network Controller

  • 4 x 1Gb, 2 x 1Gb + 2 x 10Gb, 4 x 10Gb

Communications

  • Broadcom® 5719 quad-port 1Gb NIC
    Broadcom 5720 dual-port 1Gb NIC
    Broadcom 57810 dual-port 10Gb DA/SFP+ CNA
    Broadcom 57810 dual-port 10Gb Base-T network adapter
    Intel® Ethernet I350 dual-port 1Gb server adapter
    Intel Ethernet I350 quad-port 1Gb server adapter
    Intel Ethernet X540 dual-port 10GBASE-T server adapter
    Mellanox® ConnectX®-3 dual-port 10Gb Direct Attach/SFP+ server network adapter
    Mellanox ConnectX-3 dual-port 40Gb Direct Attach/QSFP server network adapter
    Emulex® LPE 12000, single-port 8Gb Fibre Channel HBA
    Emulex LPE 12002, dual-port 8Gb Fibre Channel HBA
    Emulex LPe16000B, single-port 16Gb Fibre Channel HBA
    Emulex LPe16002B, dual-port 16Gb Fibre Channel HBA
    Emulex OneConnect OCe14102-U1-D 2-port PCIe 10GbE CNA
    QLogic® 2560, single-port 8Gb Optical Fibre Channel HBA
    QLogic 2562, dual-port 8Gb Optical Fibre Channel HBA
    Qlogic 2660, single-port 16GB, Fibre Channel HBA, full height
    Qlogic 2662, dual-port 16GB, Fibre Channel HBA, full height

Power

  • 1100W AC, 86 mm (Platinum)
    1100W DC, 86 mm
    750W AC, 86 mm (Platinum)
    750W AC, 86 mm (Titanium)
    495W AC, 86 mm (Platinum)

Availability

  • ECC memory
    Hot-plug hard drives
    Hot-plug redundant cooling
    Hot-plug redundant power
    Internal Dual SD Module
    Single Device Data Correction (SDDC)
    Spare Rank
    Support for high availability clustering and virtualization
    Proactive systems management alerts
    iDRAC8 with Lifecycle Controller

Chassis

  • The 24 x 1.8” drive and 10 x 2.5” drive configurations have the following dimensions:

    Form Factor: 1U
    H: 4.28 cm (1.68 in.) x W: 48.23 cm (18.98 in.) x D: 75.51 cm (29.72 in.)

    The 8 x 2.5” drive configuration has the following dimensions:

    Form Factor: 1U
    H: 4.28 cm (1.68 in.) W: 48.23 cm (18.98 in.) D: 70.05 cm (27.57 in.)

Management

  • Systems management:
    IPMI 2.0 compliant;
    Dell OpenManage Essentials; Dell OpenManage Mobile;
    Dell OpenManage Power Center

    Dell OpenManage Integrations:
    Dell OpenManage Integration Suite for Microsoft System Center
    Dell OpenManage Integration for VMware® vCenter

    Dell OpenManage Connections:
    HP Operations Manager, IBM Tivoli® Netcool® and CA Network and Systems Management
    Dell OpenManage for Oracle Database Manager
    Remote management
    iDRAC8 with Lifecycle Controller,
    iDRAC8 Express (default)
    iDRAC8 Enterprise (upgrade)
    8GB vFlash media (upgrade)16GB vFlash media (upgrade)
    iDRAC Quick Sync

Regulatory

  • Product Safety, EMC and Environmental Datasheets
    Dell Regulatory Compliance Home Page
    Dell and the Environment.
