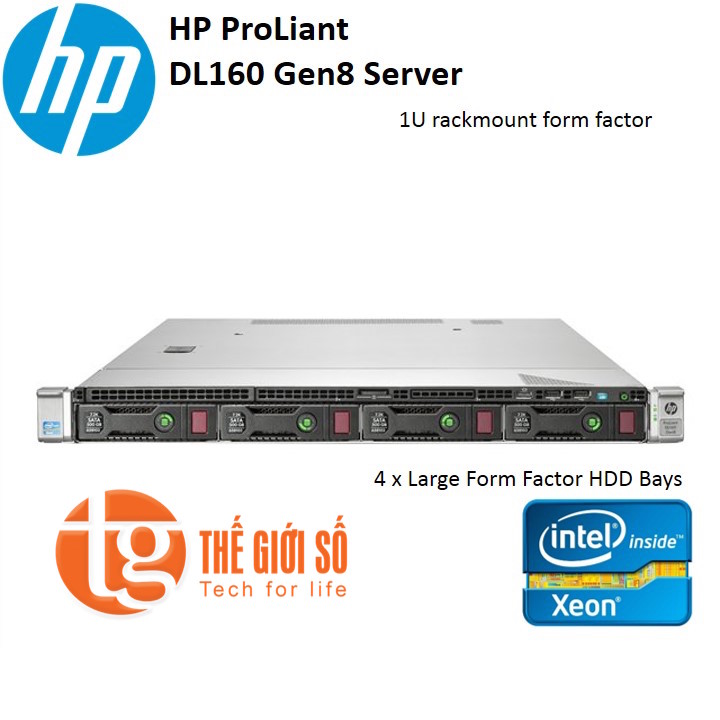

SERVER HPE PROLIANT DL160 G8 INTEL XEON E5-2609, 2.4GHz/4-core/10MB/6.4GT-s QPI/80W

SERVER HPE PROLIANT DL160 G8 INTEL XEON E5-2609 CHÍNH HÃNG, CHẤT LƯỢNG, GIÁ RẺ TẠI THẾ GIỚI SỐ
KEY FEATURES MÁY CHỦ SERVER HPE PROLIANT DL160 G8 INTEL XEON E5-2609

• Processor: 1x Intel® Xeon® E5-2609 (2.4GHz/4-core/10MB/6.4GT-s QPI/80W)
• Memory: 1x 4GB PC3-10600R (RDIMM)   NOTE: Total of 24 DIMM slots
• Network Controller: HP 1Gb 361i Ethernet Adapter 2 Ports per controller
• Storage Controller: HP Smart Array B120i SATA RAID Controller (RAID 0/1/1+0)
• Hard Drive:  Non HDD
• Internal Storage: Up to 4 large form factor Pluggable drives
• Optical Drive: None ship standard
• Power Supply: 500W Platinum FIO Power Supply with Backplane (ships standard)
• Form Factor: 1U

THÔNG SỐ KỸ THUẬT SERVER HP ProLiant DL160 G8 1U Rackmount System Intel Xeon E5-2609

• Moder Number
• HP ProLiant DL160 Gen8

• Socket Type
• Single Socket 2011

• Processor

• 1x Intel Xeon E5-2609 (2.4GHz/4-core/10MB/6.4GT-s QPI/80W)

  Number of processors: 2 or 1

  Processor family: Intel Xeon E5-2600 product family

  Processor core available: 12 or 8 or 6 or 4

• Chipset
• Intel C226

• Memory Capacity

• 1x 4GB PC3-10600R (RDIMM)

  Memory, maximum: 768GB

  Memory slots: 24 DIMM slots; Maximum

  Memory type: DDR3 RDIMM or UDIMM, depending on model

• Drive Bays

• Non-HDD

  Up to eight 2.5-inch hot-swap SAS/SATA drive bays, up to eight 2.5-inch simple-swap drive bays, up to four 3.5-inch hot-swap SAS/SATA drive bays, or up to four 3.5-inch SATA simple-swap drive bays

• RAID Supports

• HP Smart Array B120i SATA RAID Controller (RAID 0/1/1+0)

• Optical Drive

• Non-DVD

  One, for models with 2.5" drives. Support for optional DVD-ROM or Multiburner.

• Graphics
• Matrox G200eR2 with 16 MB memory integrated into the IMM2. Maximum resolution is 1600x1200 at 75 Hz with 16 M colors.

• Expansion Slots

• Up to two slots, depending on the riser cards installed. The slots are specified:

  • Slot 1: PCIe 3.0 x4 (x4-wired); dedicated slot for H1110
  • Slot 2: PCIe 3.0 x8 (x8-wired); full-height, half-length

• Input / Onput

• Two USB 3.0 ports on the front. Four USB 2.0 ports, one DB-15 video port, one DB-9 serial port, and four RJ-45 GbE network ports on the rear. One internal USB port (for embedded hypervisor).

• Network Controller

• Up to four integrated Gigabit Ethernet 1000BASE-T RJ-45 ports with the onboard BCM5719 controller (two ports are enabled, and additional two ports require the optional software FoD upgrade to enable them).

• Server Management

• PSU

• 1x 500W Platinum FIO Power Supply with Backplane (ships standard)

  Up to two redundant hot-swap 460 W AC power supplies (80 PLUS certification), or one fixed 300 W AC power supply (80 PLUS certification).

• Chassis Type
• 1U Rackmount

• OS

• Option

  Support Microsoft Windows Server 2012 R2, 2012, and 2008 R2, Red Hat Enterprise Linux 5 and 6, SUSE Linux Enterprise Server 11, VMware vSphere 5.5 (ESXi) and VMware vSphere 5.1 (ESXi).

• Dimensions

• Dimensions (W x D x H)

  4.32 x 43.5 x 69.9 cm (1.7 x 17.11 x 27.5 in)

  Weight

  15.2 kg (33.4 lb)

• Detailed Specification
• http://www8.hp.com/us/en/products/proliant-servers/product-detail.html?oid=5211699#!tab=features
