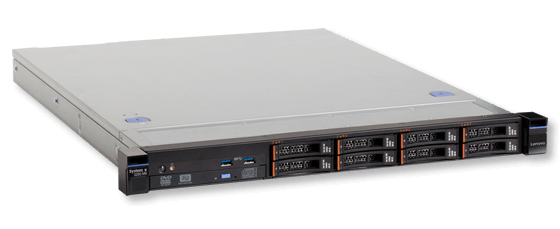

SERVER LENOVO System x3250 M6 E3-1230 v5 3.4GHz

Số lượng:

Giá bán: 0 VND

SERVER LENOVO System x3250 M6 E3-1230 v5 3.4GHz CHÍNH HÃNG, CHẤT LƯỢNG, GIÁ RẺ TẠI THẾ GIỚI SỐ

Intel Xeon Processor E3-1230 v5 3.4GHz 2133MHz 4C/8T (80W)
8GB PC4-17000 DDR4 2133MHz LP ECC UDIMM
Hard Drive : None (2.5")
ServeRAID M1210 SAS/SATA 12 Gbps Controller (RAID 0, 1, 10 )
2x Integrated Gigabit Ethernet 1000BASE-T ports
Unified Extensible Firmware (UEFI), Integrated Management Module II (IMM2.1)
4 x 2.5" hot-swap SAS/SATA drive bays
Power Supply 300 W AC
Rack (1U), Rail Kit
Warranty: 3 Year Onsite Repair 24x7 4 Hour Response

KEY FEATURES MÁY CHỦ SERVER LENOVO System x3250 M6 E3-1230 v5 3.4GHz

Components	Specification
Form factor	1U rack-mount
Processor	One processor: Intel Xeon processor E3-1200 v5 product family with four cores up to 3.7 GHz, 8 MB cache, and 2133 MHz memory speed; or Intel Core i3 processor 6100/6300 product families with two cores up to 3.9 GHz, up to 4 MB cache, and 2133 MHz memory speed; or Intel Pentium processor G4400/G4500 product families with two cores up to 3.6 GHz, 3 MB cache, and 2133 MHz memory speed; or Intel Celeron Processor G3900 product family with two cores up to 2.9 GHz, 2 MB cache, and 1866 MHz memory speed.
Chipset	Intel C232.
Memory	Four DIMM sockets. Support for ECC UDIMMs. Memory speeds up to 2133 MHz.
Memory capacity	Up to 64 GB with 4x 16 GB UDIMMs
Memory protection	Error correction code (ECC).
Drive bays	Up to 8x 2.5" SAS/SATA hot-swap drive bays 4x 3.5" SAS/SATA hot-swap drive bays Up to 8x 2.5" SATA Simple Swap drive bays 4x 3.5" SATA Simple Swap drive bays
Drive types	2.5-inch drives: 12 Gb SAS HDDs up to 1.8 TB 12 Gb Nearline (NL) SAS HDDs up to 2 TB 6 Gb NL SATA HDDs up to 2 TB 6 Gb SATA SSDs up to 1.6 TB 3.5-inch drives: 12 Gb NL SAS HDDs up to 8 TB 6 Gb NL SATA HDDs up to 8 TB 6 Gb SATA SSDs up to 1.6 TB Intermix of SAS and SATA HDDs and SSDs is supported within a system, but not within a RAID array.
Internal storage capacity	Up to 32 TB with 8 TB 3.5" NL SAS or NL SATA HDDs Up to 16 TB with 2 TB 2.5" NL SAS or NL SATA HDDs Up to 14.4 TB with 1.8 TB 2.5" SAS HDDs Up to 12.8 TB with 1.6 TB 2.5" SATA SSDs
Storage controller	6 Gb SATA RAID: RAID 0, 1, 10, 5 with C110. 12 Gb SAS/6 Gb SATA RAID: RAID 0, 1, 10 with M1210, M1215, or M5210. Optional upgrade to RAID 5, 50 is available for M1210, M1215. Optional upgrade to RAID 5, 50 is available for M5210 (zero-cache; 1 GB non-backed cache; 1 GB, 2 GB, or 4 GB flash-backed cache). Optional upgrade to RAID 6, 60 is available for M5210 (requires a cache upgrade). Optional SSD Caching and Performance Accelerator upgrades are available for M5210. 12 Gb SAS/6 Gb SATA non-RAID: N2215 HBA.
Optical drive bays	One. Support for DVD-ROM or Multiburner.
Backup drive bays	None. Support for an external backup unit.
Network interfaces	2x Integrated Gigabit Ethernet 1000BASE-T ports (RJ-45 with the onboard Intel I350-AM2 controller; one port is configured as a dedicated or shared network/systems management port.
I/O expansion slots	Two PCIe slots: Slot 1: PCIe 3.0 x8 (x4-wired); custom low profile, dedicated for the M1210 controller. Slot 2: PCIe 3.0 x8 (x8-wired); full-height, half-length.
Ports	Front: 2x USB 3.0 ports. Rear: 2x USB 3.0 and 1x DB-15 VGA ports. Optional 1x DB-9 serial port. Internal: 1x USB 3.0 port (for embedded hypervisor).
Cooling	Calibrated Vectored Cooling with four non-hot-swap system fans.
Power supply	One 300 W AC (100 - 240 V) fixed power supply (80 PLUS Gold); or up to two redundant hot-swap 460 W AC (100 - 240 V) power supplies (80 PLUS Gold, Energy Star 2.0).
Hot-swap parts	Hard drives (select models) and power supplies (select models).
Systems management	Unified Extensible Firmware Interface (UEFI), Integrated Management Module II (IMM2.1) based on Renesas SH7758, Predictive Failure Analysis, system LEDs, Automatic Server Restart, ToolsCenter, and Lenovo XClarity Administrator. Optional IMM Advanced Upgrade for remote presence (graphics, keyboard and mouse, virtual media).
Security features	Power-on password, administrator's password, Trusted Platform Module (TPM) 2.0 (hardware) / 1.2 (firmware). Optional lockable front bezel.
Video	Matrox G200eR2 with 16 MB memory integrated into the IMM2.1. Maximum resolution is 1600x1200 at 75 Hz with 16 M colors.
Operating systems	Microsoft Windows Server 2012, 2012 R2, and 2016; Red Hat Enterprise Linux 6 (x64) and 7, SUSE Linux Enterprise Server 11 (x64) and 12, VMware vSphere (ESXi) 5.5, 6.0, and 6.5.
Warranty	Three-year (Machine Type 3633) or one-year (Machine Type 3943) customer-replaceable unit and onsite limited warranty with 9x5/Next Business Day.
Service and support	Optional service upgrades are available through the Lenovo Services: 4-hour or 2-hour response time, 8 hours fix time, one-year or two-year warranty extension, remote technical support for System x hardware and selected System x and third-party (Microsoft, Linux, VMware) software.
Dimensions	Height: 43 mm (1.7 in), width: 435 mm (17.1 in), depth: 576 mm (22.7 in)
Weight	Minimum: 8.6 kg (19.0 lb), maximum: 13.7 kg (30.1 lb)
