SERVER LENOVO System x3950 X6 E7-8870v3 CHÍNH HÃNG, CHẤT LƯỢNG, GIÁ RẺ TẠI THẾ GIỚI SỐ
- 4x Compute Book Xeon 18C E7-8870v3 140W 2.1GHz/1600MHz/45MB
- 128GB( 8 x 16GB) TruDDR4 Memory (2Rx4, 1.2V)PC4-17000 CL15 2133MHz LP RDIMM
- None ship standard (2.5")
- ServeRAID M5210 SAS/SATA Controller (RAID 0, 1, and 10)
- Mezzanine LOM (ML2) slots for dual-port 10 GbE cards with SFP
- 16x 2.5" hot-swap SAS/SATA bays
- Redundant hot-swap 900 W AC (4/8)
- Warranty: 3 Year Onsite Repair 24x7 4 Hour Response
- Form Factor: 8U Rackmount
KEY FEATURES MÁY CHỦ SERVER LENOVO System x3950 X6 E7-8870v3 (6241-DAA)
| MODEL |

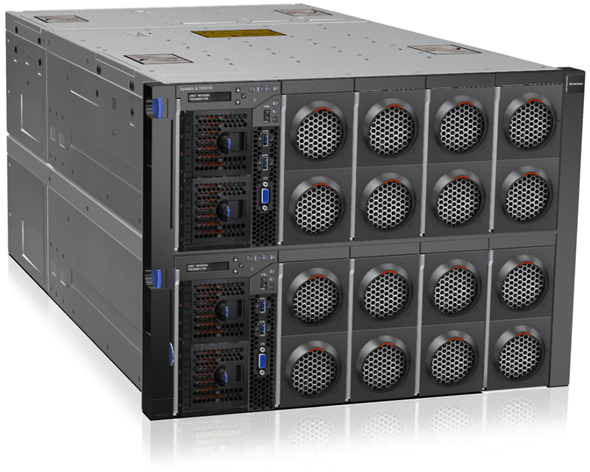

Lenovo System x3950 X6
|
6241-FAA
|
| Processor |
4x Compute Book Xeon 18C E7-8870v3 140W 2.1GHz/1600MHz/45MB
Models with E7 v3 processors: Four, six or eight Intel E7-8800 v3 processors |
| Chipset |
Intel C602J chipset. |
| Memory |
128GB( 8 x 16GB) TruDDR4 Memory (2Rx4, 1.2V)PC4-17000 CL15 2133MHz LP RDIMM
Up to 192 DIMM sockets (24 DIMMs per processor, installed in the Compute Book)
RDIMMs: Up to 6 TB with 192x 32 GB RDIMMs and eight processors; LRDIMMs: Up to 12 TB with 192x 64 GB LRDIMMs and eight processors
|
| Storage |
Hard Drive : None |
| Raid Controller |
ServeRAID M5210 SAS/SATA Controller (RAID 0, 1, and 10) |
| Slot types |
Up to 22 PCIe slots plus two dedicated Mezzanine LOM slots. The slots are as follows:
Four PCIe 3.0 x8 slots for internal RAID controllers (in two Storage Books)
Four PCIe 3.0 x16 slots (x16-wired), half length, full height (in two Primary I/O Books)
Two PCIe 3.0 x16 (x8-wired), half length, full height (in two Primary I/O Books)
Two ML2 slots for network adapter (PCIe 3.0 x8) (in two Primary I/O Books)
Four optional I/O Books, each with three slots, all full height (using two requires 6 processors; using all four requires 8 processors). Optional books are hot-swap capable.
Optional I/O Books can be either of the following options:
Half-length I/O Book: Two PCIe 3.0 x8 slots, one PCIe 3.0 x16 slot.
Full-length I/O Book: Two PCIe 3.0 x16, one PCIe 2.0 x4 slot; two aux power connectors: 150 W and 75 W. Supports one double-wide GPU up to 300 W. |
| Network Controller |
Mezzanine LOM (ML2) slots for dual-port 10 GbE cards with SFP
|
| Ports |
Front: Four USB 3.0, two USB 2.0, and one DB-15 video ports. Rear: Eight USB 2.0, one DB-15 video, one DB-9 serial, and one 1 GbE RJ-45 IMM2 systems management. Internal: two USB 2.0 port for embedded hypervisor. The second video IMM2 and internal USB hypervisor ports are used only when the server is partitioned into two four-socket servers. |
| System Management |
UEFI, Integrated Management Module II (IMM2) with remote presence feature, Predictive Failure Analysis, Light Path Diagnostics, Automatic Server Restart, Lenovo XClarity Administrator, IBM Systems Director and Active Energy Manager™, and ServerGuide. |
| Power Supply |
Redundant hot-swap 900 W AC (4/8) |
| Driver bay |
Up to 32x 1.8" eXFlash SSD bays, or up to 16x 2.5" hot-swap SAS/SATA bays, or up to 8x 2.5” hot-swap PCIe NVMe SSD drive bays.
(Optional: DVD-ROM, DVD-RW) |
| Form Fact |
Rack (8U), Rail Kit |
| OS Support |
Microsoft Windows Server 2012 R2, 2012, and 2008 R2, RHEL 6 and 7, SLES 11 and 12, and VMware vSphere ESXi |
| Warranty |
3 Year Onsite Repair 24x7 4 Hour Response |
