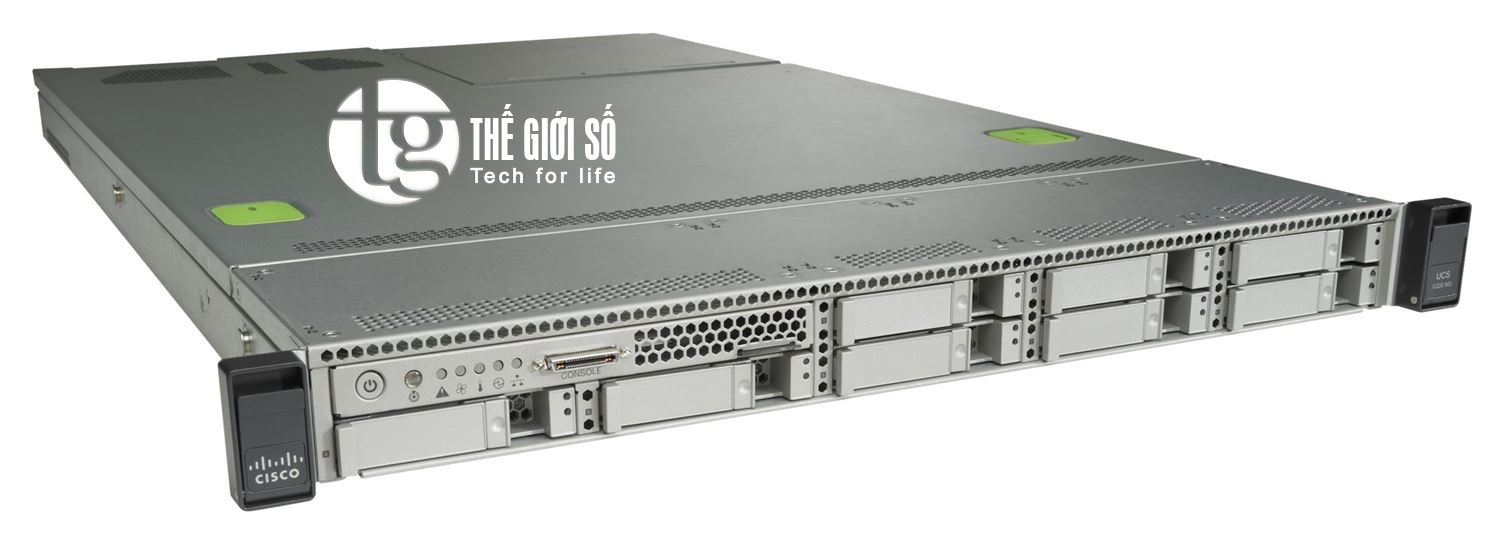

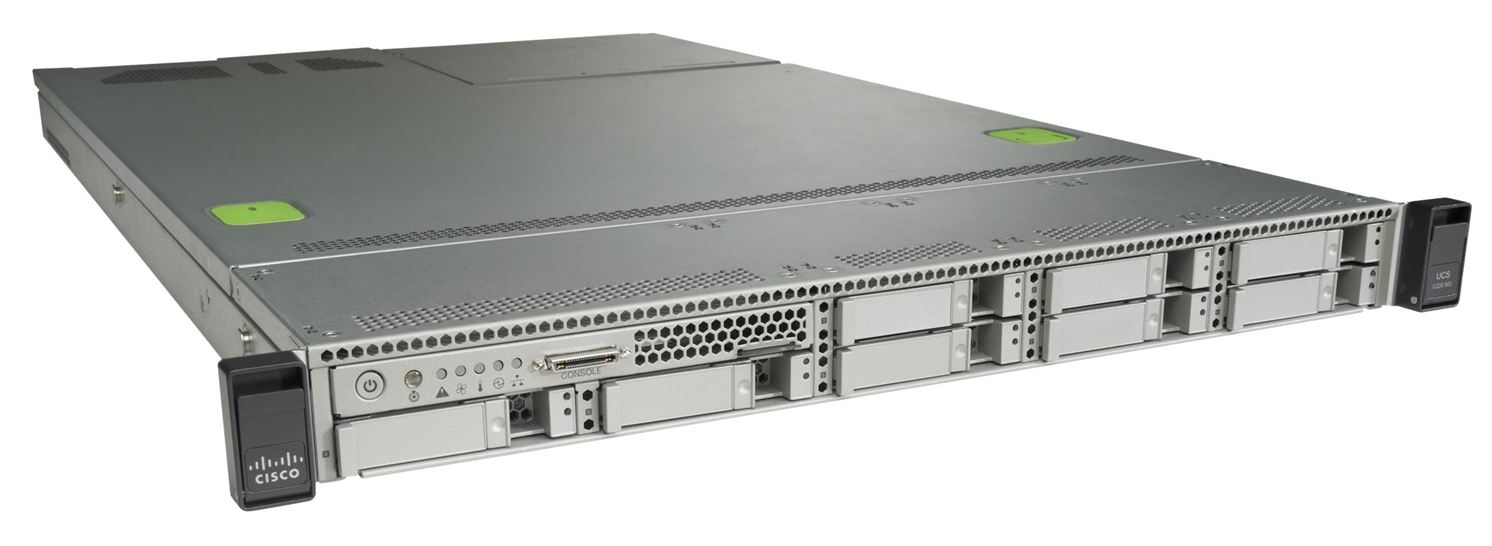

SERVER CISCO UCS C220 M3, 4-Core Processor E5-2609 v2, 2.5GHz, 10MB, 6.40GT/s QPI

Số lượng:

Giá bán: 0 VND

SERVER CISCO UCS C220 M3 E5-2609 v2 CHÍNH HÃNG, CHẤT LƯỢNG, GIÁ RẺ TẠI THẾ GIỚI SỐ
KEY FEATURES SERVER CISCO UCS C220 M3 E5-2609 v2

* 1x Intel® Xeon® 4-Core Processor E5-2609 v2, 2.5GHz, 10MB, 6.40GT/s QPI
* 1x 8GB DDR3 1333 240-Pin DDR3 ECC RDIMMs/UDIMMs (PC3 10666)
* Non x 8 HDD SSD/SATA/SAS Enterprise 2.5"
* Embedded SW RAID 0/1/10/5 8 ports SAS/SATA
* 1x Integrated Dual-port Gigabit Ethernet (2port)
* 1x Power supply 650Watts

THÔNG TIN CHI TIẾT SERVER CISCO UCS C220M3 E5-2609

Item	Specification
Processors	• 1 or 2 Intel Xeon processor E5-2600 or E5-2600 v2 product families • For a complete list of processor options, please refer to the LFF SpecSheet or SFF SpecSheet
Memory	• 16 DIMM slots • Support for DDR3 registered DIMMs • Support for DDR3 low-voltage DIMMs • Advanced error-correcting code (ECC) • Mirroring option
PCIe slots	• 2 PCIe Generation 3.0 slots available • I/O performance and flexibility with one x8 half-height and half-length slot, and one x16 full-height and half-length slot
RAID Card	• For a complete list of RAID options, please refer to the corresponding SFF SpecSheet or LFF SpecSheet
Hard drives	Up to 8 front-accessible, hot-swappable, 2.5-inch SAS, SATA or SSD or up to 4 front-accessible, hot-swappable, 3.5-inch SAS, SATA drives
Hard disk options	2.5 inch "SFF" drive options: • For a complete list of drive options, please refer to the SpecSheet 3.5 inch "LFF" drive options: • For a complete list of drive options, please refer to the SpecSheet
Cisco Flexible Flash (FlexFlash)	• The server supports up to two internal 16GB Cisco FlexFlash drives (SD cards) • The first SD card is preloaded with four virtual drives. The four virtual drives contain, respectively, the Cisco Server Configuration Utility, the Cisco Host Upgrade Utility, the Cisco C-Series server drivers set, and a blank virtual drive on which you can install an OS or a hypervisor. The second SD card is blank and can be used to mirror the first.
Internal USB	The server supports one internal USB flash drive
Cisco UCS Integrated Management Controller	• Integrated Emulex Pilot-3 Baseboard Management Controller (BMC) • IPMI 2.0 compliant for management and control • One 10/100/1000 Ethernet out-of-band management interface • CLI and WebGUI management tool for automated, lights-out management • KVM
Front-panel connector	One KVM console connector (supplies 2 USB, 1 VGA, and 1 serial connector)
Front-panel locator LED	Indicator to help direct administrators to specific servers in large data center environments
Additional rear connectors	Additional interfaces including a VGA video port, 2 USB 2.0 ports, an RJ45 serial port, 1 Gigabit Ethernet management port, and dual 1 Gigabit Ethernet ports
Physical dimensions (H x W x D)	1RU: 1.7 x 16.9 x 28.5 in. (4.32 x 43 x 72.4 cm)
Temperature: Operating	32 to 104°F (0 to 40°C) (operating, sea level, no fan fail, no CPU throttling, turbo mode)
Temperature: Nonoperating	-40 to 158°F (-40 to 70°C)
Humidity: Operating	10 to 90% noncondensing
Humidity Nonoperating	5 to 93% noncondensing
Altitude: Operating	0 to 10,000 ft (0 to 3000m); maximum ambient temperature decreases by 1°C per 300m)
Altitude: Nonoperating	0 to 40,000 ft (12,000m)
