KEY FEATURES Supermicro SuperStorage Server 2028R-NR48N
1. Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v3 family; QPI up to 9.6GT/s
2. Up to 1.5TB ECC DDR4, up to 2133MHz ; 24x DIMM slots
3. 2 PCI-E 3.0 x16, 1 PCI-E 3.0 x8
4. SIOM for flexible networking options

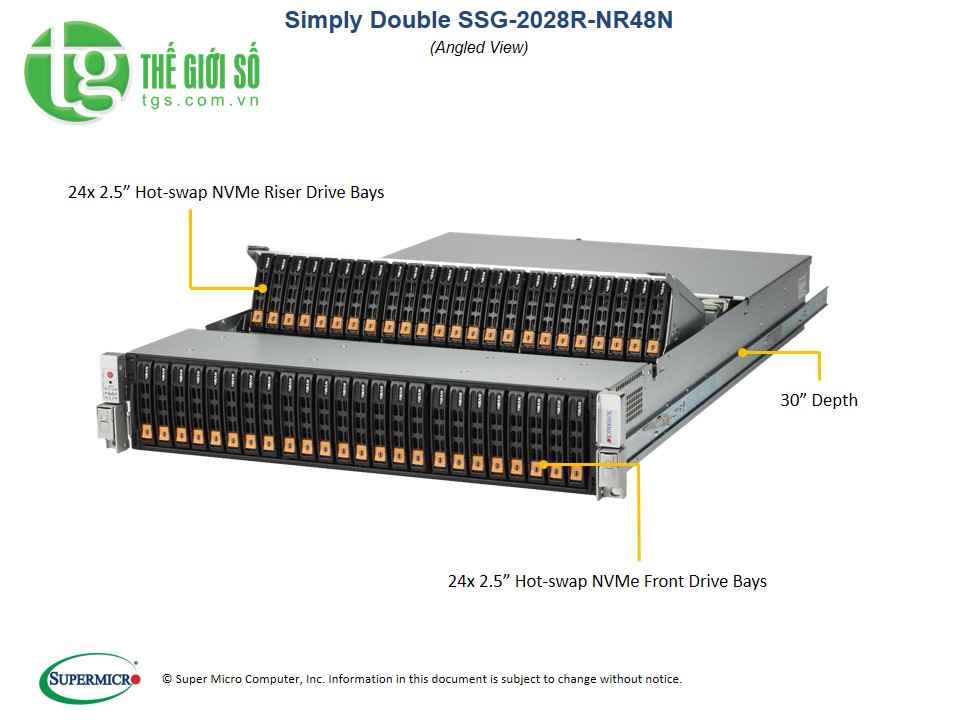

5. 48x 2.5" Hot-swap NVMe bays; 2x 2.5" rear Hot-swap drive bays
6. Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN
7. 5x 8cm hot-swap redundant PWM fans
8. 1600W Redundant Power Supplies Titanium Level (96%)
Specifications Supermicro SuperStorage Server 2028R-NR48N
Product SKUs |
|
| SSG-2028R-NR48N | SuperServer 2028R-NR48N (Black) |
Motherboard |
|
| Super X10DSC+ | |
Processor/Cache |
|
| CPU | Intel® Xeon® processor E5-2600 v3 family (up to 160W TDP) * Dual Socket R3 (LGA 2011) |
| Cores / Cache | Up to 18 Cores / Up to 45MB Cache |
| System Bus | QPI up to 9.6 GT/s |
| Note | * Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization. |
System Memory |
|
| Memory Capacity | 24x 288-pin DDR4 DIMM slots Up to 1.5TB ECC LRDIMM, RDIMM |
| Memory Type | 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit |
| DIMM Sizes | 64GB, 32GB, 16GB, 8GB, 4GB |
| Memory Voltage | 1.2 V |
| Error Detection | Corrects single-bit errors |
On-Board Devices |
|
| Chipset | Intel® C612 chipset |
| SATA | SATA3 (6Gbps) with RAID 0, 1, 5, 10 |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2400 BMC |
| Network Connectivity | SIOM support for flexible networking options |
| Graphics | ASPEED AST2400 BMC |
Input / Output |
|
| LAN | LAN ports via SIOM Add-On-Card: (See SIOM Compatibility Matrix) |
| USB | 3x USB 3.0 ports (2 rear, 2 front, 1 Type A) |
| Video | 1x VGA Connector |
| Serial Port | 1x Fast UART 16550 port / 1 Header |
Chassis |
|
| Form Factor | 2U Rackmount |
| Model | CSE-226STS-R1K62P1 |
Dimensions and Weight |
|
| Height | 3.5" (89mm) |
| Width | 17.2" (437mm) |
| Depth | 30.2" (767mm). With Cable Management Arm Installed: 35.2" (895mm) |
| Available Color | Black |
Front Panel |
|
| Buttons | Power On/Off button System UID button |
| LEDs | Power LED Hard drive activity LED 2x Network activity LEDs System Overheat LED Power fail LED |
Expansion Slots |
|
| PCI-Express | 2x PCI-E 3.0 x16 slots 1x PCI-E 3.0 x8 slots Slot 3 Occupied by NVMe AOC |
Drive Bays |
|
| Hot-swap | 48x 2.5" Hot-swap NVMe drive bays 2x 2.5" rear Hot-swap drive bays |
| Backplane | |
| Two 24 port NVMe backplanes, each supporting up to 24x 2.5" NVMe SSDs | |
System Cooling |
|
| Fans | 5x 8cm hot-swap redundant PWM cooling fans |
Power Supply |
|
| 1600W Redundant Titanium Level AC Power Supplies with PMbus | |
| Input | 100-127 V, 50-60 Hz 200-240 V, 50-60 Hz |
| +12V | Max: 83.3A & Min: 0A (100Vac-127Vac) Max: 133A & Min: 0A (200Vac-240Vac) |
| 12V SB | Max: 2.1A Min: 0A |
| Certification | Titanium Level |
Standard Parts List |
|||
| Part Number | Qty | Description | |
| Motherboard / Chassis | MBD-X10DSC+ | 1 | Super X10DSC+ Motherboard |
| CSE-226STS-R1K62P1 | 1 | 2U Rackmount | |
| Add-on Card / Module | AOC-SLG3-4E4R-P | 1 | NVMe AOC by 16,HF,RoHS/REACH |
| Backplane | BPN-NVME3-216EB | 2 | BPN-NVMe3-216A-S4 Backplane Base Board |
| Backplane | BPN-NVME3-216EL | 4 | PCIe Gen3x16 input to PLX9765 to support 12x NVMe port |
| Cable 1 | CBL-SAST-0850 | 2 | OCuLink to MiniSAS HD V.91,INT,PCIe NVMe SSD, 37CM,15D15F7D,34AWG |
| Cable 2 | CBL-SAST-0847 | 2 | OCuLink v.91,INT,PCIe NVMe SSD, 76CM, 11D38F27D,34AWG |
| Cable 3 | CBL-SAST-0848 | 2 | OCuLink v.91,INT,PCIe NVMe SSD, 95CM, 11D38F46D,34AWG |
| Cable 4 | CBL-SAST-0849 | 2 | OCuLink to MiniSAS Hd V.91,INT,PCIe NVMe SSD, 57CM,15D15F27D,34AWG |
| Parts | MCP-110-00015-0N | 8 | Pan head screw, #6-32 x 6L |
| Parts | MCP-220-82609-0N | 1 | Rear 2.5 x 2 Hot swap HDD kit for 216B/826B/417B/846X/847B |
| Drive Tray(s) | MCP-220-00127-0B | 48 | Black gen-3 2.5 NVMe drive tray, Orange tab with lock (for hotswap NVMe drive),HF,RoHS/REACH |
| Heatsink / Retention | SNK-P0047PS | 2 | 1U Passive CPU Heat Sink for X9, X10 Systems Equipped w/ a Narrow ILM MB |
| Power Supply | PWS-1K62A-1R | 2 | AC-DC 1600W, Titanium Level, Redundancy, 1U, DC Output: +12V and +12Vs, 203 x 73.5 x 40 mm, AC Input: 90 - 264 VAC/47-63Hz, PMBus 1.2 with DSP controller,HF,RoHS/REACH |
Optional Parts List |
|||
| Part Number | Qty | Description | |
| SIOM Network Card(s) | AOC-MGP-I2 | - | SIOM 2-port GbE, Intel i350-AM2 |
| AOC-MGP-I4 | - | SIOM 4-port GbE, Intel i350-AM4 | |
| AOC-MTGN-I2S | - | SIOM 2-port 10G SFP+, Intel 82599ES | |
| AOC-MTG-I4S | - | SIOM 4-port 10G SFP+, Intel XL710 | |
| Software | SFT-OOB-LIC | 1 | OOB Management Package (per node license) |
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
