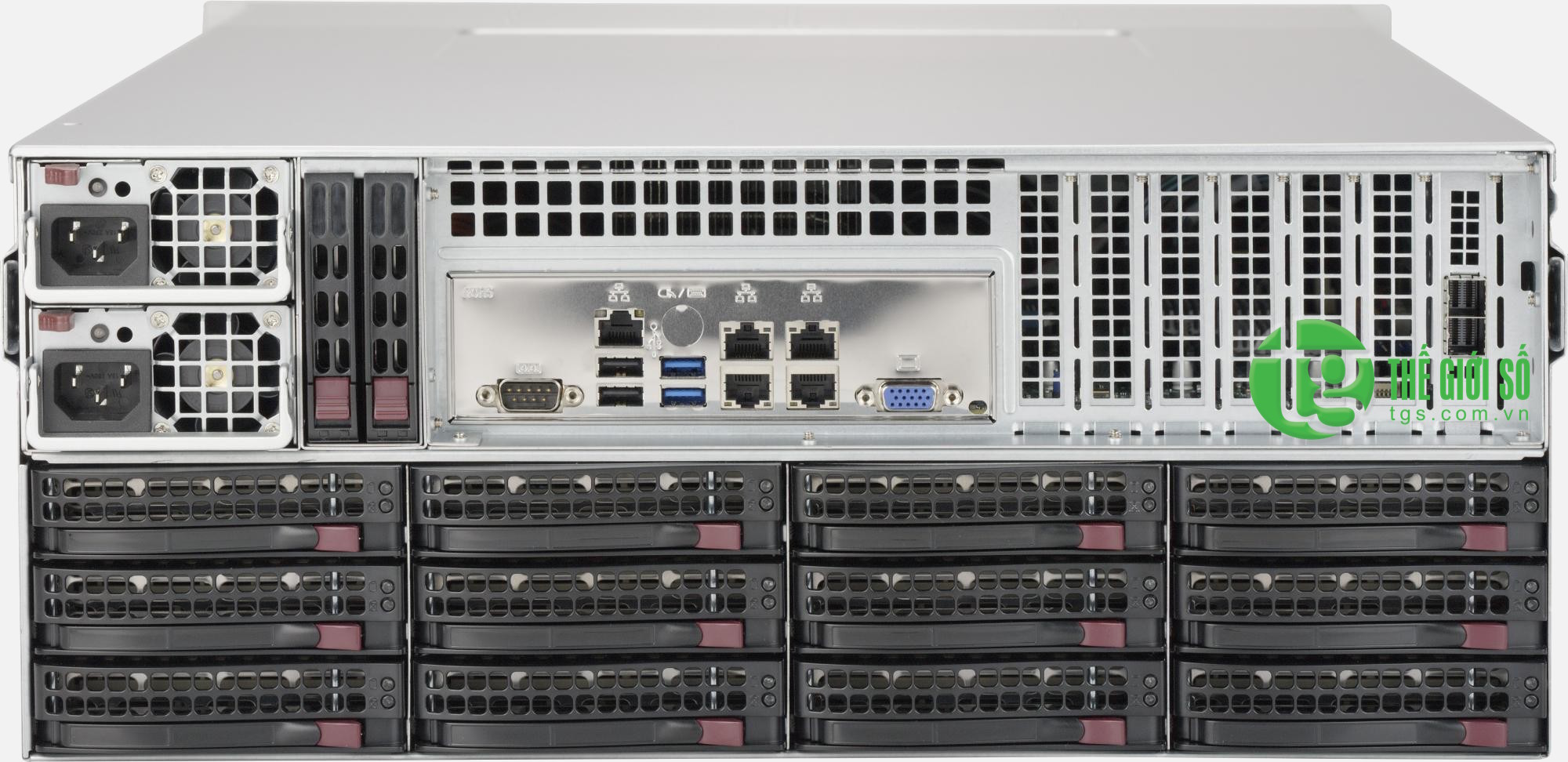

Supermicro SuperStorage Server SSG-6048R-E1CR36L CHÍNH HÃNG, GIÁ RẺ TẠI THẾ GIỚI SỐ
KEY FEATURES Supermicro SuperStorage Server SSG-6048R-E1CR36L
1. Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v3
family; QPI up to 9.6GT/s
2. Up to 1TB ECC DDR4 2133MHz; 16x DIMM slots
3. 1 PCI-E 3.0 x16, 6 PCI-E 3.0 x8 (slot 1 & 2 occupied by controller
and JBOD expansion port)
4. Dual 10GBase-T LAN w/ Intel® X540
5. 36x 3.5" Hot-swap SAS3/SATA3 drive bays (24 front + 12 rear); 2x 2.5"
optional Hot-swap drive bays (rear); 4x 2.5" internal fixed drive bays
6. SAS3 via LSI 3008 controller; IT mode
7. Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN
8. 7x 80mm middle cooling fans
9. 1280W Redundant Power Supplies Platinum Level (94%)
Product SKUs |
|||
| SSG-6048R-E1CR36L | SuperServer 6048R-E1CR36L (Black) | ||
Chassis |
|||
| Form Factor | 4U Rackmount | ||
| Model | CSE-847BE1C-R1K28LPB | ||
Integrated Board |
|||
| Super X10DRH-iT | |||
Processor/Cache |
|||
| CPU | Intel® Xeon® processor E5-2600 v3 family (up to 160W TDP) * Dual Socket R3 (LGA 2011) |
||
| Cache | Up to 18 Cores / Up to 45MB Cache | ||
| System Bus | QPI up to 9.6 GT/s | ||
System Memory |
|||
| Memory Capacity | 16x 288-pin DDR4 DIMM slots Up to 1TB ECC LRDIMM, 512GB ECC RDIMM |
||
| Memory Type | 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit | ||
| DIMM Sizes | 64GB, 32GB, 16GB, 8GB, 4GB | ||
| Error Detection | Corrects single-bit errors | ||
On-Board Devices |
|||
| Chipset | Intel® C612 chipset | ||
| SAS | SAS3 (12Gbps) via LSI 3008 IT mode firmware |
||
| SATA | SATA3 (6Gbps) with RAID 0, 1, 5, 10 | ||
| IPMI | IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Network Connectivity | Intel® X540 Dual Port Gigabit Ethernet | ||
| Graphics | ASPEED AST2400 BMC | ||
Input / Output |
|||
| LAN | 2x RJ45 10GBase-T LAN ports 1x RJ45 Dedicated IPMI LAN port |
||
| USB | 2x USB 3.0 ports (rear) 2x USB 2.0 ports (rear) 1x Type A |
||
| Video | 1x VGA Connector | ||
| Serial Port | 1x Fast UART 16550 port / 1 Header | ||
| Expansion Slots | |||
| PCI-Express | 1x PCI-E 3.0 x16 slot 6x PCI-E 3.0 x8 slots Slot 1 & 2 occupied by controller and JBOD Expansion Port |
||
Drive Bays |
|||
| Hot-swap | 36x 3.5" Hot-swap SAS3/SATA3 drive bays (24 front + 12 rear); 2x 2.5" optional Hot-swap drive bays (rear); 4x 2.5" internal fixed drive bays |
||
| Power Supply | 1280W High-Efficiency (95%+) power supply | ||
| Management | |||
| Software |
|
||
| Power Configurations |
|
||
Standard Parts List |
|||
| Part Number | Qty | Description | |
| Motherboard / Chassis | MBD-X10DRH-iT | 1 | Super X10DRH-iT Motherboard |
| CSE-847BE1C-R1K28LPB | 1 | 4U Chassis | |
| Backplane | BPN-SAS3-846EL1 | 1 | SAS 12G single expander backplane, with LSI SAS3 expander, support 24x 3.5 |
| BPN-SAS3-826EL1 | 1 | SAS 12G single expander backplane, with LSISAS3x28 expander, support 12x 3.5 | |
| Power Supply | PWS-1K28P-SQ | 2 | 1U 1280W, redundant single output power supply |
| Cable 1 | CBL-SAST-0531-01 | 4 | Internal Mini-SAS HD to Mini-SAS HD 80cm,30AWG,12Gb/s [FCI],RoHS/REACH |
| Cable 2 | CBL-PWEX-0645 | 2 | big 4 pin male to big 4 pin female, power extension 15cm, 20AWG,RoHS/REACH |
| Cable 3 | CBL-0296L | 3 | 4 pin to 4 pin fan extension cord, for PWM fan. 23cm. 24AWG |
| Heatsink / Retention | SNK-P0048PS | 2 | 2U Passive CPU Heat Sink for X9, X10 Generation Systems Equipped w/ a Narrow ILM MB |
| Add On Card | AOC-S3008L-L8E-O-P | 1 | 12Gbps SAS3/HBA/ 2 internal HD connectors/STD Gen3 PCI/122 HD support |
| Add On Module | AOM-SAS3-8I8E-LP | 1 | 8-port Mini SAS HD Int-to-Ext cable adapter w/ LP bracket |
