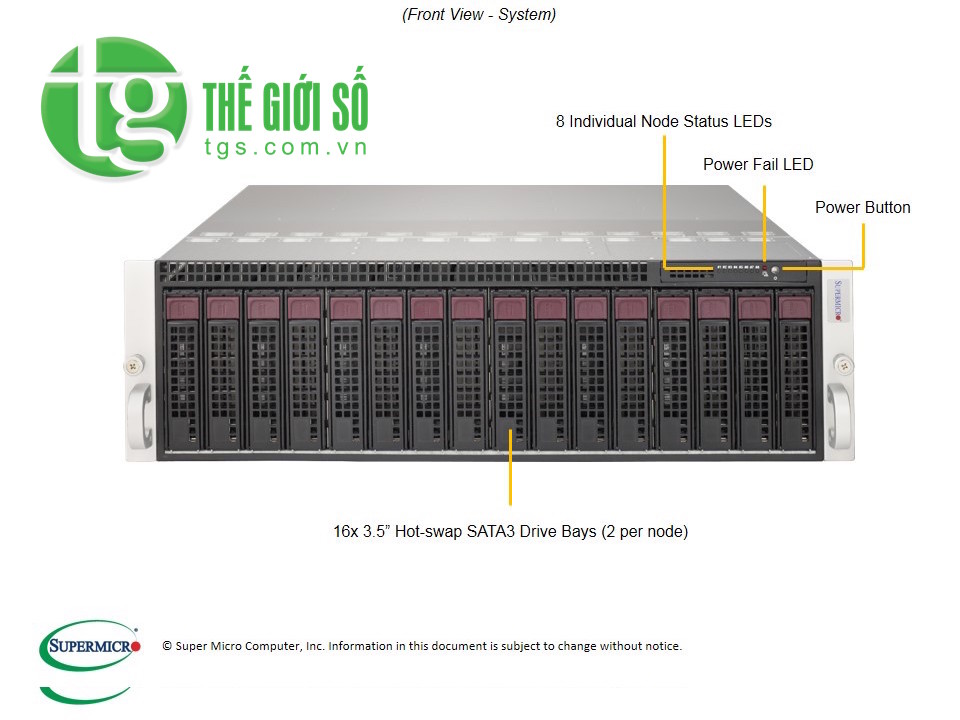

SERVER MicroCloud SuperServer 5038MA-H24TRF

Số lượng:
Giá bán: 242,000,000 VND


CDN, Cloud Computing, Hosting & Application Delivery, Web Cache, Web Server

• 12x sleds per system, 2x modular UP Nodes per sled in 3U, EACH SLED:
• Intel® Atom processor C2750 SoC, FCBGA 1283, 20W 8-Core
• Up to 32GB DDR3 VLP ECC UDIMM 1600MHz memory support
• 2x 2.5" SATA3 HDDs per node
• Dual GbE ports via Intel i350 LAN controller; shared LAN supports IPMI 2.0, Virtual Media over LAN, and KVM over LAN
• Integrated Aspeed AST2400 Graphics controllers - 1x VGA port
• 2x USB 2.0 ports
• 4x 9cm heavy-duty PWM fans with optimal cooling zone
• 1620W Redundant Platinum Level Digital Power Supplies

Integrated Board

Super A1SA2-2750F


Product SKUs
SuperServer * SYS-5038MA-H24TRF (Black)
Motherboard * MBD-A1SA2-2750F
CPU * Dual FCBGA 1283
* Intel® Atom™ Processor C2750
* CPU TDP 20W (8-Core)
* System-on-Chip
System Memory
Memory Capacity * 4x 204-pin DDR3 SO-DIMM socket
* Supports up to 32GB DDR3 VLP ECC UDIMM memory
Memory Type * 1600/1333MHz ECC DDR3 SDRAM, 204-pin gold-plated DIMMs
DIMM Sizes * 16GB, 8GB, 4GB, 2GB
Memory Voltage * 1.5 V, 1.35 V
On-Board Devices
Chipset * Avoton SOC
SATA * 2x SATA3 (6Gbps) w/ RAID 0, 1
IPMI * Support for Intelligent Platform Management Interface v.2.0
* IPMI 2.0 with virtual media over LAN and KVM over LAN support
* Aspeed AST2400 BMC
Graphics * Aspeed AST2400 Graphics (BMC with Graphic controller)
Network Devices
Onboard NIC * Intel® i350 GbE controller
* Dual RJ-45 connectors
* Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
* Intel® I/O Acceleration Technology (I/O AT)
Input / Output
Serial ATA * 4x SATA3 (6Gbps) ports
LAN * 2x RJ45 Gigabit Ethernet LAN ports
* 1x RJ45 dedicated IPMI LAN port
USB * 2x USB 2.0 ports
VGA * 1x VGA port
System BIOS
BIOS Type * 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features * DMI 2.3
* ACPI 1.0 / 2.0
* USB Keyboard support
* SMBIOS 2.3
Front Window
Switch * Power Button
* Node Switch
Form Factor * 3U
Model * CSE-939HA-R1K63B
Height * 5.21" (132.5 mm)
Width * 17.5" (444.5 mm)
Depth * 29.5" (749.3 mm)
Packing * 720mm (W) x 409mm (H) x 1076mm (L)
Weight * 95.0 lbs (43.09 kg) - barebone
* 115.0 lbs (52.16 kg) - with 2.5" HDDs
Color Black
Drive Bays
Internal * 4x 2.5" fixed HDD bays (up to 48x 2.5" HDDs total)
* 2x 2.5" fixed peripheral bays
* Enterprise SATA HDD and SSD only recommended
System Cooling
Fans * 4x 9cm Heavy duty fans with optimal cooling zone
Power Supply
1620W high-efficiency redundant power supply w/ PMBus
AC Input * 1000W Output @ 100-120V, 12-10A, 50-60Hz
* 1200W Output @ 120-140V, 12-10A, 50-60Hz
* 1620W Output @ 180-240V, 10.5-8A, 50-60Hz
DC Output * 1000W: +12V/84A; +5Vsb/4A
* 1200W: +12V/100A; +5Vsb/4A
* 1620W: +12V/135A; +5Vsb/4A
Certification Platinum Level94%+    Platinum Level
  (Cert. in progress)
PC Health Monitoring
CPU * Monitors for CPU Cores, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages.
* 3-Phase-switching voltage regulator with auto-sense from 0.5V-2.3V
FAN * Cooling zone
Temperature * Monitoring for CPU and chassis environment
Operating Environment / Compliance
RoHS * RoHS Compliant
Environmental Spec. * Operating Temperature: 10°C to 35°C (50°F to 95°F)
* Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
* Operating Relative Humidity: 8% to 90% (non-condensing)
* Non-operating Relative Humidity: 5% to 95% (non-condensing)


Parts List

Parts List
  Part Number Qty Description
Motherboard / Chassis MBD-A1SA2-2750F 12 Super A1SA2-2750F Motherboard
CSE-939HA-R1K63B 1 3U Chassis
Cable 1 CBL-0218L 1 11.5CM KVM/SUVI 36 PIN TO 9 PIN/15 PIN 2USB, 30/28AWG
Backplane BPN-SAS-939H 1 CSE939 MicroCloud (12 node) hotswap backplane
Add-on Card AOM-PDB-MC24-O-P 12 939 MicroCloud 12 nodes power board between MB and backplane
Add-on Card AOM-BPN-MC24-O-P 12 AOM-BPN-MC24 Add-on-Card
