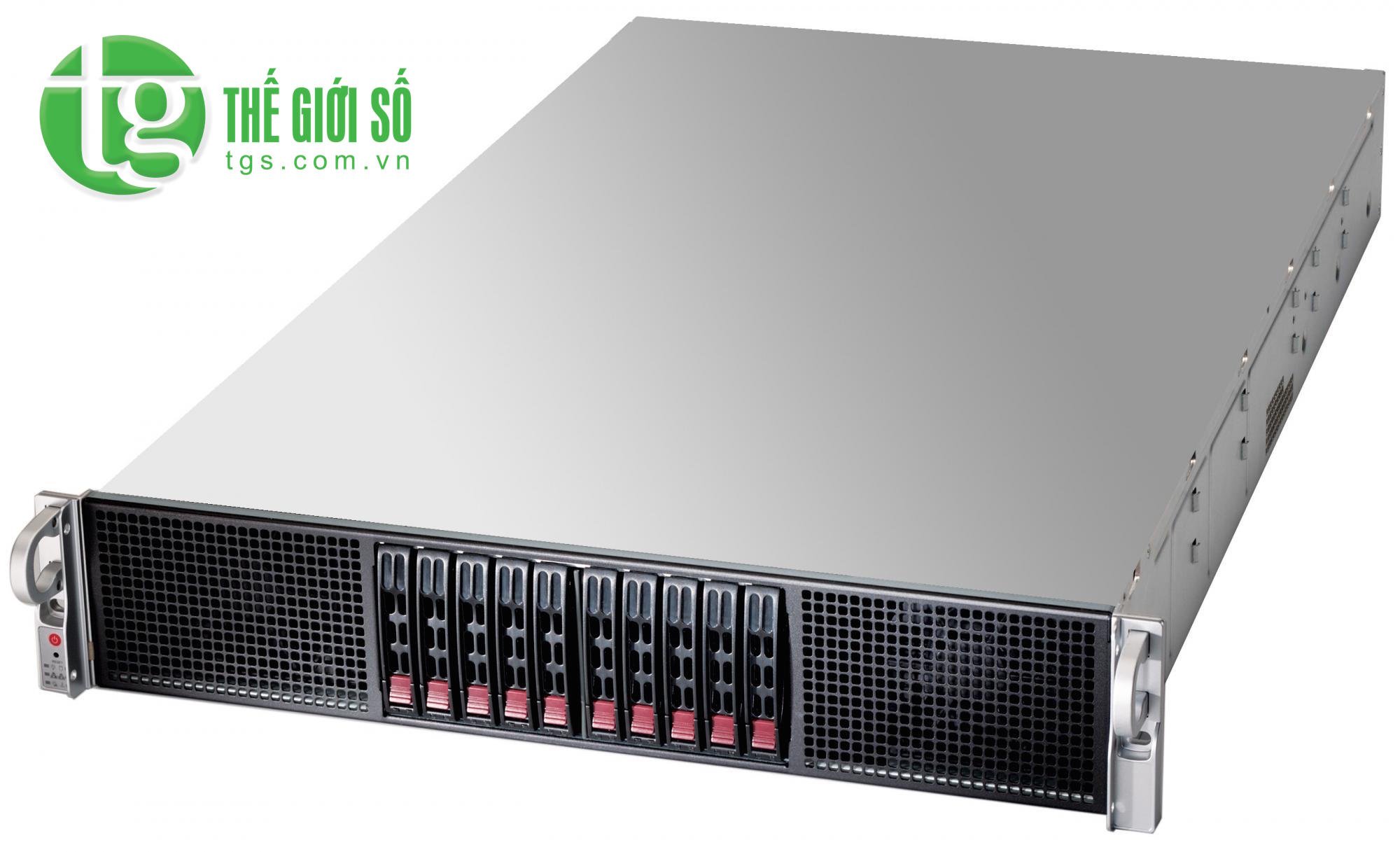

SERVER SuperServer 2027GR-TRFHT


Số lượng:
Giá bán: 0 VND

SERVER SuperServer 2027GR-TRFHT CHÍNH HÃNG, CHẤT LƯỢNG, GIÁ RẺ TẠI THẾ GIỚI SỐ

KEY FEATURES MÁY CHỦ SERVER SuperServer 2027GR-TRFHT

CDNCLOUD COMPUTINGHOSTING & APPLICATION DELIVERYWEB CACHEWEB SERVER

Key Features
1. Intel® Xeon® processor E5-2600 family support; QPI up to 8.0 GT/s
2. Up to 256GB DDR3 1600MHz reg ECC DIMM
3. 6x PCI-E 3.0 x16 slots
    (support GPU/Xeon Phi cards, opt.),
    1x PCI-E 3.0 x8 (in x16) low-profile slot
4. Integrated IPMI 2.0 with KVM and Dedicated LAN
5. Intel® X540 10GBase-T Controller
6. 10x Hot-swap 2.5" SATA Drive Bays
7. 1800W Redundant Power Supplies Platinum Level (94%+)
8. 5x heavy duty cooling fans
9. Smart server management tools





Integrated Board

X9DRG-HTF


Available Color: Black

* Drivers & Utilities  * BIOS  * IPMI  * Tested MEM  * Tested HDD  * Manuals
* OS Certification Matrix  *
Compatible GPU List


Product SKUs
SYS-2027GR-TRFHT * SuperServer 2027GR-TRFHT (Black)
Motherboard
Super X9DRG-HTF
Processor/Cache
CPU * Intel® Xeon® processor E5-2600 family (up to 130W TDP)
*
Dual Socket R (LGA 2011)
Cache * Up to 20MB
System Bus * QPI up to 8 GT/s
GPU/Xeon Phi Support * M2090/M2075, up to 130W CPU at 35°C
* K10/K20/K20X (Kepler), up to 130W CPU at 35°C
* Xeon Phi, up to 130W CPU at 35°C
System Memory
Memory Capacity * 8x 240-pin DDR3 DIMM sockets
* Supports up to 256 GB DDR3 ECC Registered memory (RDIMM)
* Supports up to 48 GB DDR3 ECC and non-ECC UDIMM
Memory Type * 1600/1333/1066MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes * 32GB, 16GB, 8GB, 4GB, 2GB, 1GB
Memory Voltage * 1.5 V, 1.35 V
Error Detection * Corrects single-bit errors
* Detects double-bit errors   (using ECC memory)
On-Board Devices
Chipset * Intel® C602 Chipset
SATA * Intel ICH10R SATA 3.0Gbps Controller
* RAID 0, 1, 5, 10 support
IPMI * Support for Intelligent Platform Management Interface v.2.0
* IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
* Nuvoton WPCM450 BMC
Network Controllers * Intel® X540 Dual Port 10GBase-T
* Virtual Machine Device Queues reduce I/O overhead
* Supports 10GBase-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Graphics * Matrox G200eW
Input / Output
SATA * 2 SATA 3.0 ports (6Gbps)
* 8 SATA 2.0 ports (3Gbps)
LAN * 2x RJ45 10GBase-T ports
* 1 RJ45 Dedicated IPMI LAN port
USB * 2 USB 2.0 ports
Video * 1 VGA Connector
Keyboard/Mouse * 1 PS/2 Keyboard/Mouse port
Serial Port * 1 Serial header
System BIOS
BIOS Type * 16Mb SPI Flash EEPROM with AMI® BIOS
BIOS Features * Plug and Play (PnP)
* APM 1.2
* DMI 2.3
* PCI 2.2
* ACPI 1.0 / 2.0
* USB Keyboard support
* Hardware BIOS Virus protection
* SMBIOS 2.3
* UEFI
* RTC (Real Time Clock) Wakeup
Chassis
Form Factor * 2U Rackmount
Model * CSE-218G-R1800B
Dimensions
Height * 3.5" (89mm)
Width * 17.2" (437mm)
Depth * 31" (787mm)
Gross Weight * 54 lbs (24.5 kg)
Available Color * Black
Front Panel
Buttons * Power On/Off button
* System Reset button
LEDs * Power LED
* Hard drive activity LED
* 2x Network activity LEDs
* System Overheat LED / Fan fail LED /
* UID LED
Expansion Slots
PCI-Express * 6x PCI-E 3.0 x16 slots
   (support GPU/Xeon Phi cards, option)
* 1x PCI-E 3.0 x8 (in x16) low-profile slot
Drive Bays
Hot-swap * 10x 2.5" Hot-swap drive bays
System Cooling
Fans * 5x 8cm heavy duty fans with optimal fan speed control
Power Supply
1800W (1+1) Redundant 1800W power supply with PMBus
AC Input * 1000W Output @ 100-120V, 12-10A, 50-60Hz
* 1200W Output @ 120-140V, 12-10A, 50-60Hz
* 1800W Output @ 200-240V, 10-8.5A, 50-60Hz
DC Output * 1000W: +12V/84A; +5Vsb/4A
* 1200W: +12V/100A; +5Vsb/4A
* 1800W: +12V/150A; +5Vsb/4A
Certification Platinum Level Certified94%+    Platinum Certified
PC Health Monitoring
CPU * Monitors for CPU Cores,+1.5V, +3.3V, +5V, +12V, +5 Stdby, +3.3 Stdby, VBAT, Memory Voltages.
* CPU Core 6-Phase-switching voltage regulator
FAN * Total of five 4-pin PWM fans
* 5x fans with tachometer monitoring
* Status monitor for speed control
* Status monitor for on/off control
* Low noise fan speed control
Temperature * Monitoring for CPU and chassis environment
* CPU thermal trip support
* Thermal Control for 10x Fan Connectors
* PSU I2C temperature sensing logic
* Thermal Monitor 2 (TM2) support
* PECI
LED * Power Fail / Overheat LED
* Suspend-state Indicator LED
* UID LED
Other Features * SDDC Support
Operating Environment / Compliance
RoHS * RoHS Compliant
Environmental Spec. * Operating Temperature: 10°C to 35°C (50°F to 95°F)
* Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
* Operating Relative Humidity: 8% to 90% (non-condensing)
* Non-operating Relative Humidity: 5% to 95% (non-condensing)




Parts List

Parts List - (Items Included)
  Part Number Qty Description
Motherboard / Chassis MBD-X9DRG-HTF 1 Super X9DRG-HTF Motherboard
CSE-218G-R1800B 1 2U Black SC218G Chassis
Backplane BPN-SAS-218A 1 SAS Backplane for 2U GPU, x10 2.5
Cable 1 CBL-0157L 1 8 pin to 8 pin ribbon SGPIO cable with tube , 40cm, PBF
Cable 2 CBL-0333L 6 6+2 pin to 8 pin GPU power extension from MB, 30cm. 18/20AWG
Cable 3 CBL-0460L 1 8 Pin to Two 4 Pin Backplane Power Ext. 28/22cm. 18AWG
Cable 4 CBL-0294L-02 2 Cross-over Ipass to 4 SATA w/SB. S. 58cm. 30AWG
Cable 5 CBL-0207L 2 59CM SATA ROUND S-S PBF.26AWG
Riser Card RSC-R2UG-2E16-X9 1 RSC-R2UG-2E16-X9-O-P
Riser Card RSC-R2UG-2E16R-X9 1 RSC-R2UG-2E16R-X9-O-P
Riser Card RSC-R2UG-E16R-X9 1 RSC-R2UG-E16R-X9-O-P
Riser Card RSC-R2UG-E8G-X9 1 RSC-R2UG-E8G-X9-O-P
Heatsink / Retention SNK-P0048PS 1 2U Passive CPU Heat Sink for X9 Generation Motherboards w/ Narrow ILM
Heatsink / Retention SNK-P0047PS 1 1U Passive CPU Heat Sink for X9 Generation Motherboards w/ Narrow ILM
Power Supply PWS-1K81P-1R 2 1800W Platinum Redundant Single Output
Fan 1 FAN-0137L4 5 80x80x38 mm 10.5K RPM SC217, SC827 Chassis Middle Fan
Drive Tray(s) MCP-220-00047-0B 10 Black gen 3rd hot-swap 2.5inch HDD tray
Mounting Rails MCP-290-00057-0N 1 Rail set, quick/quick, default for 4U 17.2\"W
