SERVER MicroCloud SuperServer 5037MC-H86RF CHÍNH HÃNG, CHẤT LƯỢNG, GIÁ RẺ TẠITHẾ GIỚI SỐ
KEY FEATURES MÁY CHỦ SERVER MicroCloud SuperServer 5037MC-H86RF
CDN, CLOUD COMPUTING, HOSTING & APPLICATION DELIVERY, WEB CACHE, WEB SERVER
Key Features (per node)
1. Intel® Xeon® processor E3-1200 v2 series, Intel® 2nd Gen. Core i3 and Intel® Pentium® family processors; socket H2 (LGA 1155)***
2. 2x 3.5" Hot-swap SAS/SATA with selected RAID/HBA card
3. 1 (x8) PCI-E 3.0*** low-profile slot
4. Up to 32GB DDR3 ECC 1333MHz / 1600MHz*** UDIMMs in 4 sockets
5. 2x GbE LAN ports via Micro-LP NIC, 1x Dedicated LAN for IPMI Remote Management
6. 4x 8cm Heavy duty fans with optimal cooling zone
7. 1620W Redundant 80Plus Platinum Level power supplies
 |
Integrated Board  Super X9SCD+-HF |
• Drivers & Utilities • BIOS • IPMI • Tested MEM • Tested HDD • Manuals • OS Certification Matrix
| Product SKUs | |
| SuperServer | * SYS-5037MC-H86RF (Black) |
| Motherboard | |
| Motherboard | * MBD-X9SCD+-HF |
| Processor/Cache | |
| CPU | * Intel® Xeon® processor E3-1200 v2 series, Intel® 2nd Generation Core i3 & Intel® Pentium® family processors*** * Socket H2 (LGA 1155) |
| System Memory (per node) | |
| Memory Capacity | * 4x 240-pin DDR3 DIMM sockets * Supports up to 32 GB DDR3 ECC Un-Buffered memory (UDIMM) |
| Memory Type | * 1333/1066MHz ECC DDR3, 240-pin gold-plated DIMMs |
| DIMM Sizes | * 8GB, 4GB, 2GB, 1GB |
| Memory Voltage | * 1.5 V |
| Error Detection | * Corrects single-bit errors * Detects double-bit errors (using ECC memory) |
| On-Board Devices (per node) | |
| Chipset | * Intel® C204 PCH chipset* |
| SATA | * 1x SATA DOM |
| IPMI | * Support for Intelligent Platform Management Interface v.2.0 * IPMI 2.0 with virtual media over LAN and KVM over LAN support * Winbond® WPCM450 BMC |
| Headers | * 1 USB header & 1 Type A USB, TPM ready |
| Graphics | * Matrox G200eW 16MB DDR2 |
| Super I/O | * Nuvoton WPCM450RA0BX |
| Network Devices (per node) | |
| Micro-LP NIC | * Intel® 82580DB, 2x Gigabit LAN ports * iSCSI boot and PXE support * Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output * Intel® I/OAT 3 support for fast, scaleable, and reliable networking * VMDq support for better performance of virtualization |
| Expansion Slots (per node) | |
| PCI-Express | * 1 (x8) PCI-E 2.0 low-profile slot MicroLP Adapter Matrix |
| Input / Output (per node) | |
| Serial ATA | * 2x SAS/SATA ports with selected AOC |
| LAN | * 2x RJ45 Gigabit Ethernet LAN ports * 1x RJ45 Dedicated IPMI LAN port |
| KVM | * 1x VGA, 1x COM, and 2x USB 2.0 ports |
| System BIOS | |
| BIOS Type | * 64Mb SPI Flash EEPROM with AMI BIOS |
| BIOS Features | * Plug and Play (PnP) * APM 1.2 * ACPI 1.0 / 2.0 * USB Keyboard support * SMBIOS 2.3 * RTC (Real Time Clock) Wakeup |
| Rear Window (each node) | |
| Switch | * Power / UID |
| Chassis | |
| Form Factor | 3U |
| Model | CSE-938H-R1620B |
| Dimensions | |
| Height | 5.21" (132.5 mm) |
| Width | 17.26" (438.4 mm) |
| Depth | 23.2" (589 mm) |
| Weight | 62.2 lbs (28.21 kg) - barebone |
| Color | Black |

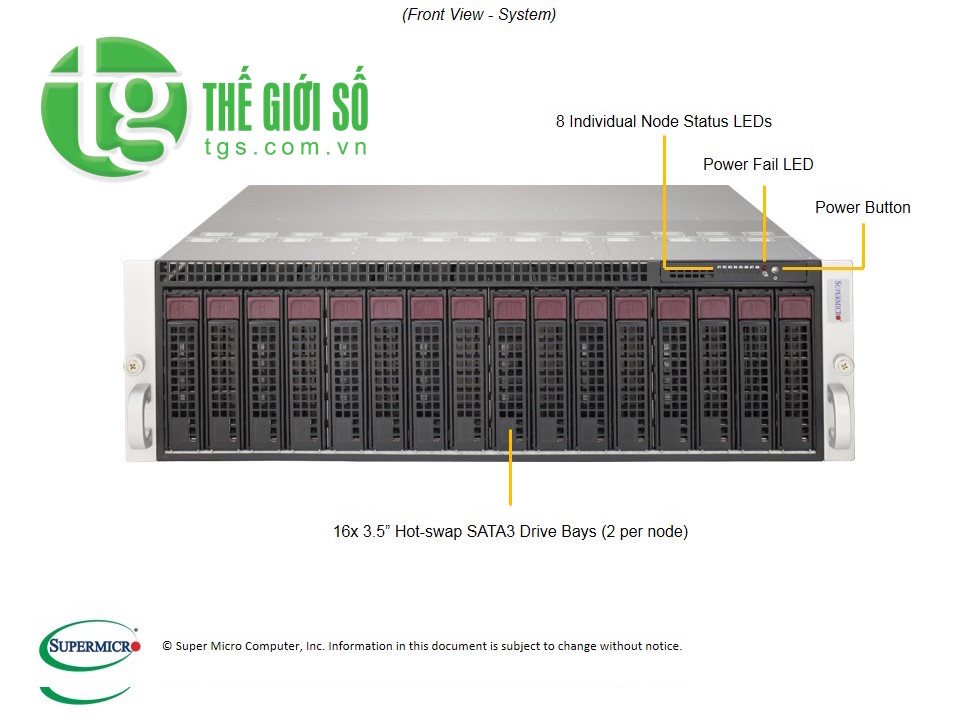

| Front Panel | |
| Buttons | * Power On/Off button |
| LEDs | * Power LED * Hard drive activity LED * Network activity LED * System Overheat LED * UIO LED |
| Drive Bays | |
| Hot-swap | * 2x 3.5" hot-swap SAS/SATA3 (6Gbps) HDDs per node; up to 16 HDDs total * With selected HDD AOC, supports 2x SAS or SATA3 (6Gbps) via backplane * SAS or enterprise SATA HDD only recommended |
| System Cooling | |
| Fans | * 4x 8cm Heavy duty fans with optimal cooling zone |
| Power Supply | |
| 1620W high-efficiency redundant power supply | |
| AC Input | 1000W: 100-120 V, 50-60 Hz, 12-10 Amp 1200W: 120-140 V, 50-60 Hz, 12-10 Amp 1620W: 180-240 V, 50-60 Hz, 10.5-8 Amp |
| DC Output +5V standby |
4 Amp |
| DC Output +12V |
1000W: 84 Amp 1200W: 100 Amp 1620W: 135 Amp |
| Certification |   80PLUSPlatinum Certified [ Test Report ] |
| PC Health Monitoring | |
| CPU | * Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages. * 6-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V |
| FAN | * Cooling zone |
| Temperature | * Monitoring for CPU and chassis environment |
| Operating Environment / Compliance | |
| RoHS | * RoHS Compliant |
| Environmental Spec. | * Operating Temperature: 10°C to 35°C (50°F to 95°F) * Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) * Operating Relative Humidity: 8% to 90% (non-condensing) * Non-operating Relative Humidity: 5% to 95% (non-condensing) |
|
Parts List |
|||
| Parts List | |||
| Part Number | Qty | Description | |
| Motherboard / Chassis | MBD-X9SCD+-HF | 8 | Super X9SCD+-HF Motherboard |
| CSE-938H-R1620B | 1 | 3U Chassis | |
| Cable 1 | CBL-0218L | 1 | 11.5CM KVM/SUVI 36PIN TO 9PIN/15PIN/2USB |
| Heatsink / Retention | SNK-P0047PS+ | 8 | Customized Passive CPU Heat Sink for Micro Cloud Series Servers |
| Backplane | BPN-SAS-938H | 1 | Backplane for SC938, 16x 3.5" SAS/SATA |
| Micro-LP NIC | AOC-CG-i2-O-P | 8 | AOC-CG-I2-O-P |
| Riser Card | RSC-RR1U-E8-O-P | 8 | RSC-RR1U-E8 (Rev 3.10) |
| Mounting Rails | MCP-290-00053-0N | 1 | Rail set, quick/quick, default for 2,3U 17.2"W |
| Power Supply | PWS-1K62P-1R | 2 | 1620W REDUNDANT POWER MODULE |
| Optional Parts List | |||
| Part Number | Qty | Description | |
| HDD Converter | MCP-220-93801-0B | - | Black Hotswap Gen 6 3.5" to 2.5" HDD Tray (SC747, 936, 938 and Blade) |
| Add On Card | AOC-SAS2LP-H8iR | - | 2108 based SAS/SATA RAID- 8 internal ports/Low profile-PCI-E |
| Add On Card | AOC-S2308L-L8i | - | STD Gen-3 PCI-e at 8Gb/s, 6Gb/s SAS, 8 internal ports, low profile, RAID 0, 1 |
| Cable | CBL-0476L | - | For AOC-SAS2LP-H8iR |
| Cable | CBL-0118L-03 | - | For AOC-S2308L-L8i |
