KEY FEATURES MÁY CHỦ SERVER MicroCloud SuperServer 5037MC-5037MC-H8TRF
CDN, CLOUD COMPUTING, HOSTING & APPLICATION DELIVERY, WEB CACHE, WEB SERVER
Key Features (per node)
1. Intel® Xeon® processor E3-1200 family, Intel® 2nd Generation Core i3 & Intel® Pentium® family processors; socket H2 (LGA 1155)***
2. 2x 3.5" Hot-swap SATA3 (6 Gbps)
3. 1x (x8) PCI-E 2.0 low-profile slot
4. Up to 32GB DDR3 ECC UDIMM 1333/1066MHz Memory support; 2 channels
5. 2x Intel 82580DB GbE LAN ports
6. 1x Dedicated LAN for IPMI Remote Management
7. 4x 8cm Heavy duty fans with optimal cooling zone
8. 1620W Redundant 80Plus Platinum Level power supplies
 |
Integrated Board  Super X9SCD-F |
Drivers & Utilities BIOS Tested Memory List Manuals
| Product SKUs | |
| SuperServer | * SYS-5037MC-H8TRF (Black) |
| Motherboard | |
| Motherboard | * MBD-X9SCD-F |
| Processor/Cache | |
| CPU | * Intel® Xeon® processor E3-1200 family, Intel® 2nd Generation Core i3 & Intel® Pentium® family processors*** * Socket H2 (LGA 1155) |
| System Memory (per node) | |
| Memory Capacity | * 4x 240-pin DDR3 DIMM sockets * Supports up to 32 GB DDR3 ECC Un-Buffered memory (UDIMM) |
| Memory Type | * 1333/1066MHz ECC DDR3, 240-pin gold-plated DIMMs |
| DIMM Sizes | * 8GB, 4GB, 2GB, 1GB |
| Memory Voltage | * 1.5 V |
| Error Detection | * Corrects single-bit errors * Detects double-bit errors (using ECC memory) |
| On-Board Devices (per node) | |
| Chipset | * Intel® C204 PCH chipset* |
| SATA | * 1x SATA DOM |
| IPMI | * Support for Intelligent Platform Management Interface v.2.0 * IPMI 2.0 with virtual media over LAN and KVM over LAN support * Winbond® WPCM450 BMC |
| Headers | * 1 USB header & 1 Type A USB, TPM ready |
| Graphics | * Matrox G200eW 16MB DDR2 |
| Super I/O | * Nuvoton WPCM450RA0BX |
| Network Devices (per node) | |
| Micro-LP NIC | * Intel® 82580DB, 2x Gigabit LAN ports * iSCSI boot and PXE support * Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output * Intel® I/OAT 3 support for fast, scaleable, and reliable networking * VMDq support for better performance of virtualization |
| Expansion Slots (per node) | |
| PCI-Express | * 1 (x8) PCI-E 2.0 low-profile slot |
| Input / Output (per node) | |
| Serial ATA | * 2x SATA 3.0 ports (6Gbps) |
| LAN | * 2x RJ45 Gigabit Ethernet LAN ports * 1x RJ45 Dedicated IPMI LAN port |
| KVM | * 1x VGA, 1x COM, and 2x USB 2.0 ports |
| System BIOS | |
| BIOS Type | * 64Mb SPI Flash EEPROM with AMI BIOS |
| BIOS Features | * Plug and Play (PnP) * APM 1.2 * ACPI 1.0 / 2.0 * USB Keyboard support * SMBIOS 2.3 * RTC (Real Time Clock) Wakeup |
| Rear Window (each node) | |
| Switch | * Power / UID |
| Chassis | |
| Form Factor | 3U |
| Model | CSE-938H-R1620B |
| Dimensions | |
| Height | 5.21" (132.5 mm) |
| Width | 17.26" (438.4 mm) |
| Depth | 23.2" (589 mm) |
| Weight | 62.2 lbs (28.21 kg) - barebone |
| Color | Black |

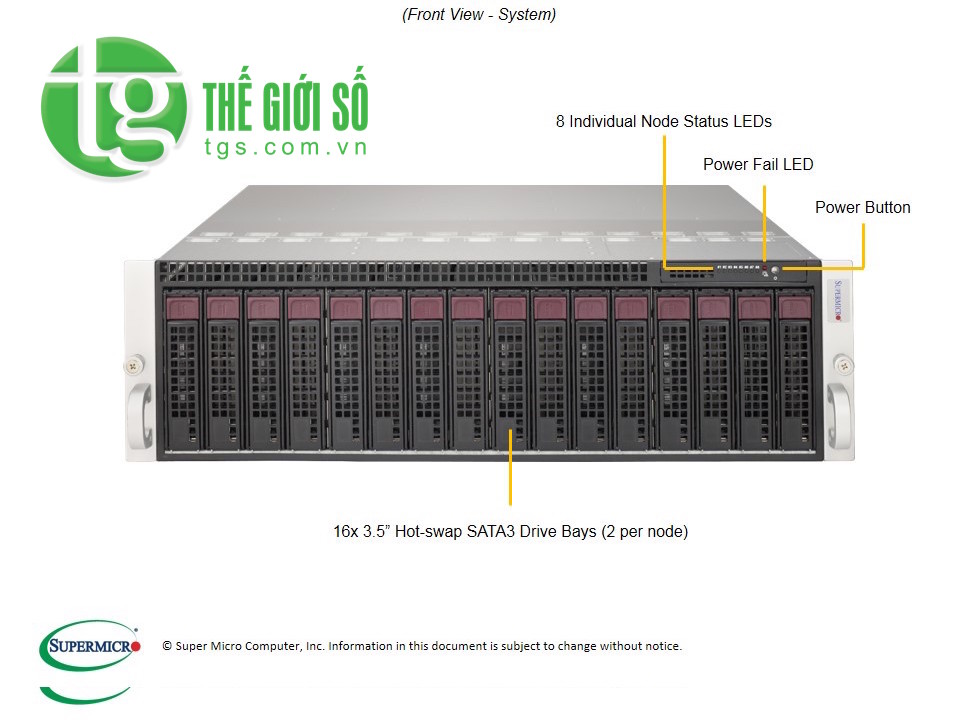

| Front Panel | |
| Buttons | * Power On/Off button |
| LEDs | * Power LED * Hard drive activity LED * Network activity LED * System Overheat LED * UIO LED |
| Drive Bays | |
| Hot-swap | * 2x 3.5" hot-swap SATA3 (6Gbps) HDDs per node; up to 16 HDDs total * Enterprise SATA HDD only recommended |
| System Cooling | |
| Fans | * 4x 8cm Heavy duty fans with optimal cooling zone |
| Power Supply | |
| 1620W high-efficiency redundant power supply | |
| AC Input | 1000W: 100-120 V, 50-60 Hz, 12-10 Amp 1200W: 120-140 V, 50-60 Hz, 12-10 Amp 1620W: 180-240 V, 50-60 Hz, 10.5-8 Amp |
| DC Output +5V standby |
4 Amp |
| DC Output +12V |
1000W: 84 Amp 1200W: 100 Amp 1620W: 135 Amp |
| Certification |   80PLUSPlatinum Certified [ Test Report ] |
| PC Health Monitoring | |
| CPU | * Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages. * 6-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V |
| FAN | * Cooling zone |
| Temperature | * Monitoring for CPU and chassis environment |
| Operating Environment / Compliance | |
| RoHS | * RoHS Compliant |
| Environmental Spec. | * Operating Temperature: 10°C to 35°C (50°F to 95°F) * Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) * Operating Relative Humidity: 8% to 90% (non-condensing) * Non-operating Relative Humidity: 5% to 95% (non-condensing) |
|
Parts List |
|||
| Parts List | |||
| Part Number | Qty | Description | |
| Motherboard / Chassis | MBD-X9SCD-F | 8 | Super X9SCD-F Motherboard |
| CSE-938H-R1620B | 1 | 3U Chassis | |
| Cable 1 | CBL-0218L | 1 | 11.5CM KVM/SUVI 36PIN TO 9PIN/15PIN/2USB |
| CD | CDR-X9-UP | 1 | Driver CD for X9-UP series motherboard |
| Heatsink / Retention | SNK-P0047PS+ | 8 | Customized Passive CPU Heat Sink for Micro Cloud Series Servers |
| Backplane | BPN-SAS-938H | 1 | Backplane for SC938, 16x 3.5" SAS/SATA |
| Micro-LP NIC | AOC-CG-i2-O-P | 8 | AOC-CG-I2-O-P |
| Riser Card | RSC-RR1U-E8-O-P | 8 | RSC-RR1U-E8 (Rev 3.10) |
| Power Supply | PWS-1K62P-1R | 2 | 1620W REDUNDANT POWER MODULE |
