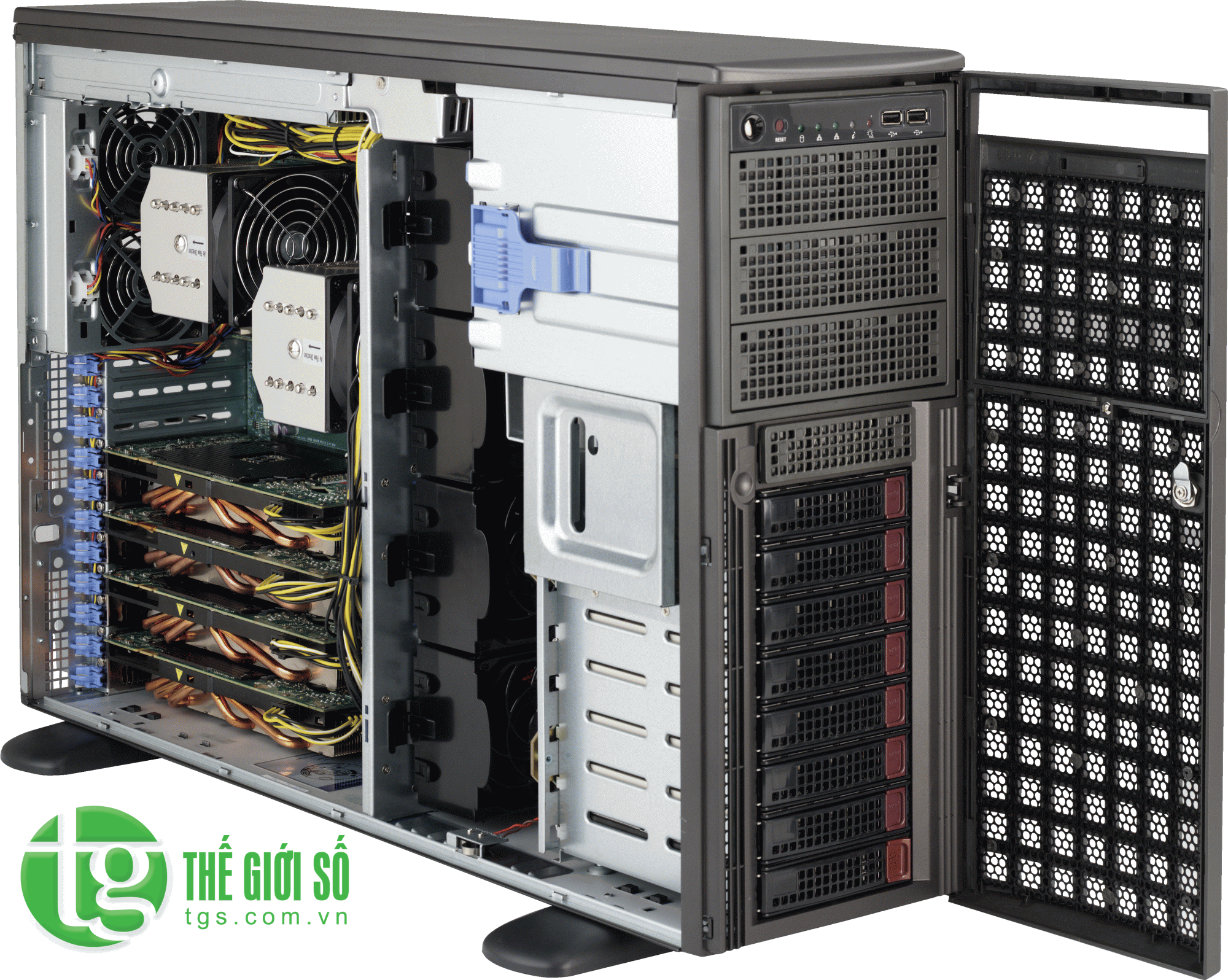

SERVER SuperServer 7047GR-TPRF CHÍNH HÃNG, CHẤT LƯỢNG, GIÁ RẺ TẠI THẾ GIỚI SỐ
KEY FEATURES MÁY CHỦ SERVER SuperServer 7047GR-TPRF
CDN, CLOUD COMPUTING, HOSTING & APPLICATION DELIVERY, WEB CACHE, WEB SERVER
1. Intel® Xeon® processor E5-2600 family; QPI up to 8GT/s
2. Up to 512GB DDR3 1600MHz ECC Registered DIMM; 16x DIMM sockets
3. 4x PCI-E 3.0 x16 slots
(4x double-width GPU/Xeon Phi opt.),
2x PCI-E 3.0 x8 (1 in x16) slots,
1x PCI-E 2.0 x4 (in x8) slot
4. I/O ports: 1 VGA, 2 COM, 2 GbE, 10 USB 2.0, & 1 IPMI Dedicated LAN
5. 8x Hot-swap 3.5", 3x Fixed 5.25" and 1x Fixed 3.5" Drive Bays
6. 4x Heavy Duty Fans, 4x Exhaust Fans, and 2x Active Heatsink with Optimal Fan Speed Control
7. 1620W Redundant Power Supplies Platinum Level (94%)
8. Tower or Rackmount
 |
Integrated Board  Super X9DRG-QF |
Available Color: Black
* Drivers & Utilities * BIOS * IPMI * Tested MEM * Tested HDD * Manuals
* OS Certification Matrix * Compatible GPU List
| Product SKUs | |
| SYS-7047GR-TPRF | * SuperServer 7047GR-TPRF (Black) |
| Motherboard | |
| Super X9DRG-QF | |
| Processor/Cache | |
| CPU | * Intel® Xeon® processor E5-2600 (up to 150W TDP) * Dual Socket R (LGA 2011) |
| Cache | * Up to 20MB |
| System Bus | * QPI up to 8 GT/s |
| GPU/Xeon Phi Support | * M2075/FC475, up to 150W CPU at 35°C * M2090, up to 150W CPU at 30°C * K10/K20/K20X (Kepler), up to 150W CPU at 35°C * Xeon Phi, up to 150W CPU at 30°C |
| System Memory | |
| Memory Capacity | * 16x 240-pin DDR3 DIMM sockets * Supports up to 512 GB DDR3 ECC Registered memory (RDIMM) * Supports up to 192 GB DDR3 ECC Un-Buffered memory (UDIMM) |
| Memory Type | * 1600/1333/1066MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs |
| DIMM Sizes | * 32GB, 16GB, 8GB, 4GB, 2GB, 1GB |
| Memory Voltage | * 1.5 V, 1.35 V |
| Error Detection | * Corrects single-bit errors * Detects double-bit errors (using ECC memory) |
| On-Board Devices | |
| Chipset | * Intel® C602 Chipset |
| SATA | * SATA 2.0 3Gbps with RAID 0, 1, 5, 10 * SATA 3.0 6Gbps with RAID 0, 1 |
| IPMI | * Support for Intelligent Platform Management Interface v.2.0 * IPMI 2.0 with virtual media over LAN and KVM-over-LAN support * Renesas SH7757 BMC |
| Network Controllers | * Intel® i350 Dual Port Gigabit Ethernet * Virtual Machine Device Queues reduce I/O overhead * Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output * 1x Realtek RTL8201N PHY (dedicated IPMI) |
| Graphics | * Matrox G200eW |
| Input / Output | |
| SATA | * 2 SATA 3.0 ports (6Gbps) * 8 SATA 2.0 ports (3Gbps) |
| LAN | * 2x RJ45 Gigabit Ethernet LAN ports * 1 RJ45 Dedicated IPMI LAN port |
| USB | * 9x USB 2.0 ports total (4x rear + 4x via header + 1x Type A) |
| Video | * 1x VGA port |
| Serial Port / Header | * 1x Fast UART 16550 port / 1 Header |
| Expansion Slots | |
| PCI-Express | * 4x PCI-E 3.0 x16 (double-width) * 2x PCI-E 3.0 x8 (1 in x16 slot) * 1x PCI-E 2.0 x4 (in x8) |
| System BIOS | |
| BIOS Type | * 128Mb SPI Flash EEPROM with AMI® BIOS |
| BIOS Features | * Plug and Play (PnP) * APM 1.2 * DMI 2.2 * ACPI 1.0 / 2.0 * USB Keyboard support * SMBIOS 2.3 * UEFI |
| Chassis | |
| Form Factor | * 4U Rackmountable / Tower * Optional Rackmount Kit |
| Model | * CSE-747BTQ-R1K62B |
| Dimensions | |
| Height | * 18.2" (462mm) |
| Width | * 7.0" (178mm) |
| Depth | * 26.5" (673mm) |
| Gross Weight | * 62 lbs (28.1kg) |
| Available Colors | * Dark Gray |
| Front Panel | |
| Buttons | * Power On/Off button * System Reset button |
| LEDs | * Power LED * Hard drive activity LED * 2x Network activity LEDs * System Overheat & Power Fail LED |
| Ports | * 2x Front USB 2.0 Ports |
| Drive Bays | |
| Hot-swap | * 8x Hot-swap 3.5" SAS/SATA Drive Trays |
| Peripheral Bays | * 3x 5.25" drive bays in storage module - rotates 90° for Rackmount * 1x 3.5" fixed drive bay |
| SAS / SATA Backplane | |
| SAS / SATA Hard Drive Backplane with SES2 | |
| System Cooling | |
| Fans | * 4x 92x38mm 4-pin PWM Middle Cooling Fans * 4x 80x38mm 4-pin PWM Rear Exhaust Fans |
| Power Supply | |
| 1620W high-efficiency redundant power supply w/ PMBus | |
| AC Input | * 1000W Output @ 100-120V, 12-10A, 50-60Hz * 1200W Output @ 120-140V, 12-10A, 50-60Hz * 1620W Output @ 180-240V, 10.5-8A, 50-60Hz |
| DC Output | * 1000W: +12V/84A; +5Vsb/4A * 1200W: +12V/100A; +5Vsb/4A * 1620W: +12V/150A; +5Vsb/4A |
| Certification |   Platinum Certified [ Test Report ] |
| PC Health Monitoring | |
| CPU | * Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages. * 6-Phase-switching voltage regulator |
| FAN | * Total of eight fan headers supporting up to 8 fans * 8x fans with tachometer status monitoring * Status monitor for speed control * Pulse Width Modulated (PWM) fan connectors |
| Temperature | * Monitoring for CPU and chassis environment * CPU thermal trip support * Thermal Control for 8x fan connectors * Thermal Monitor 2 (TM2) support * PECI |
| LED | * CPU / System Overheat LED * Suspend static indicator LED * UID/Remote LED |
| Other Features | * Chassis intrusion detection * Chassis intrusion header |
| Operating Environment / Compliance | |
| RoHS | * RoHS Compliant |
| Environmental Spec. | * Operating Temperature: 10°C to 35°C (50°F to 95°F) * Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) * Operating Relative Humidity: 8% to 90% (non-condensing) * Non-operating Relative Humidity: 5% to 95% (non-condensing) |
|
Parts List |
|||
| Parts List - (Items Included) | |||
| Part Number | Qty | Description | |
| Motherboard / Chassis | MBD-X9DRG-QF | 1 | Super X9DRG-QF Motherboard |
| CSE-747BTQ-R1K62B | 1 | 4U Chassis | |
| Backplane | BPN-SAS-747TQ-O-P | 1 | 4u, SAS Backplane,x8 3.5 |
| Cable 1 | CBL-0061L | 6 | 35CM, SATA CABLE, PB FREE, 26AWG, flat |
| Cable 2 | CBL-0157L | 2 | 8 pin to 8 pin ribbon SGPIO cable with tube , 40cm, PBF |
| CD | CDR-X9 | 1 | Driver CD for X9 series |
| Heatsink / Retention | SNK-P0050AP4 | 2 | 4U Active CPU Heat Sink for X9 Socket R WS |
| Power Supply | PWS-1K62P-1R | 2 | 1620W REDUNDANT POWER MODULE |
| Optional Parts List | |||
| Part Number | Qty | Description | |
| Mounting Rails | MCP-290-00059-0B | - | Rail set+handles, quick/quick, optional for 4U 17.2"W tower |
| AOC Dummy Assembly | MCP-240-00096-0N | - | SC747B GPU / Add-on Card Dummy Assembly (2 Slots)-Single Pack |
| HDD Converter | MCP-220-93801-0B | - | Black Hotswap Gen 6 3.5 to 2.5 HDD Tray (SC747, 936, 938 and Blade) |
